Surly Preamble Flat Bar
KEY FEATURES
- 100% Surly Chromoly steel frame and fork
- Five easy-to-understand frame sizes to fit nearly every size of rider
- Clearance for 650b x 41mm tires (XS/SM) and 700c x 41mm tires (MD-XL) (with or without fenders)
NOTABLE SPEC
- Shimano Cues 1x9 drivetrain
- Tektro M275/276 hydraulic disc brakes
- Teravail Washburn 700c x 35mm (MD/LG/XL)
- Teravail Washburn 650b x 35mm (XS/SM)
Component Spec
Frameset
Frame 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated; rack and fender mounts

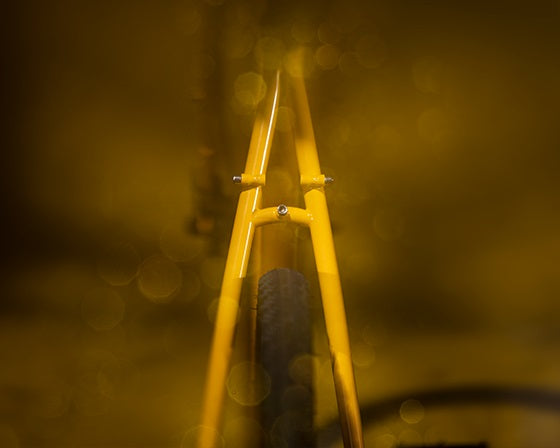

Fork 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated; Fork crown and mid-blade rack mounts, fender compatible
Color Milky Lemonade
Drivetrain
Rear Derailleur Shimano Cues U4000 GS
Cassette Shimano Cues LG400, 11–46t, 9spd
Chain Shimano LG500
Crankset Shimano Cues U4000, 40T
Shifter Shimano Cues U4000
Brake Tektro Hydraulic M275/276 with 160/160mm Center Lock Rotors
Components
Headset FSA Orbit MX
Stem Kalloy AL 31.8mm

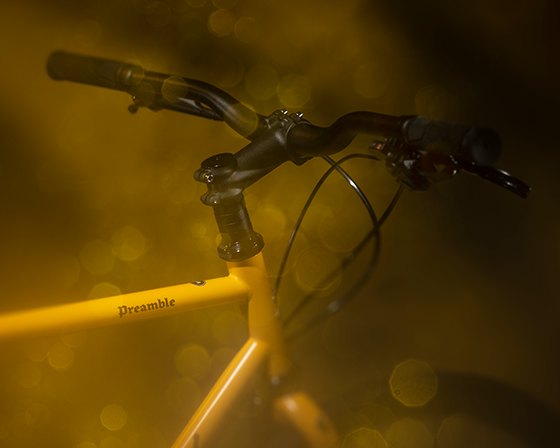

Handlebar Kalloy AL, 9 degree backsweep, 35mm rise
Grips Velo Black
Seatpost Kalloy 27.2 x 300mm, 0 offset (XS-MD), 12mm offset (LG-XL)
Saddle WTB Volt Wide
Wheels
Front Wheel Shining DB-21 Rim, Shimano MT200 QR x 100mm, Center Lock, 32h
Rear Wheel Shining DB-21 Rim, Shimano QC400 QR x 141mm, Center Lock, 32h
Tires Teravail Washburn, 30 tpi, Wire Bead 650b x 35mm (XS-SM), 700c x 35mm (MD-XL
