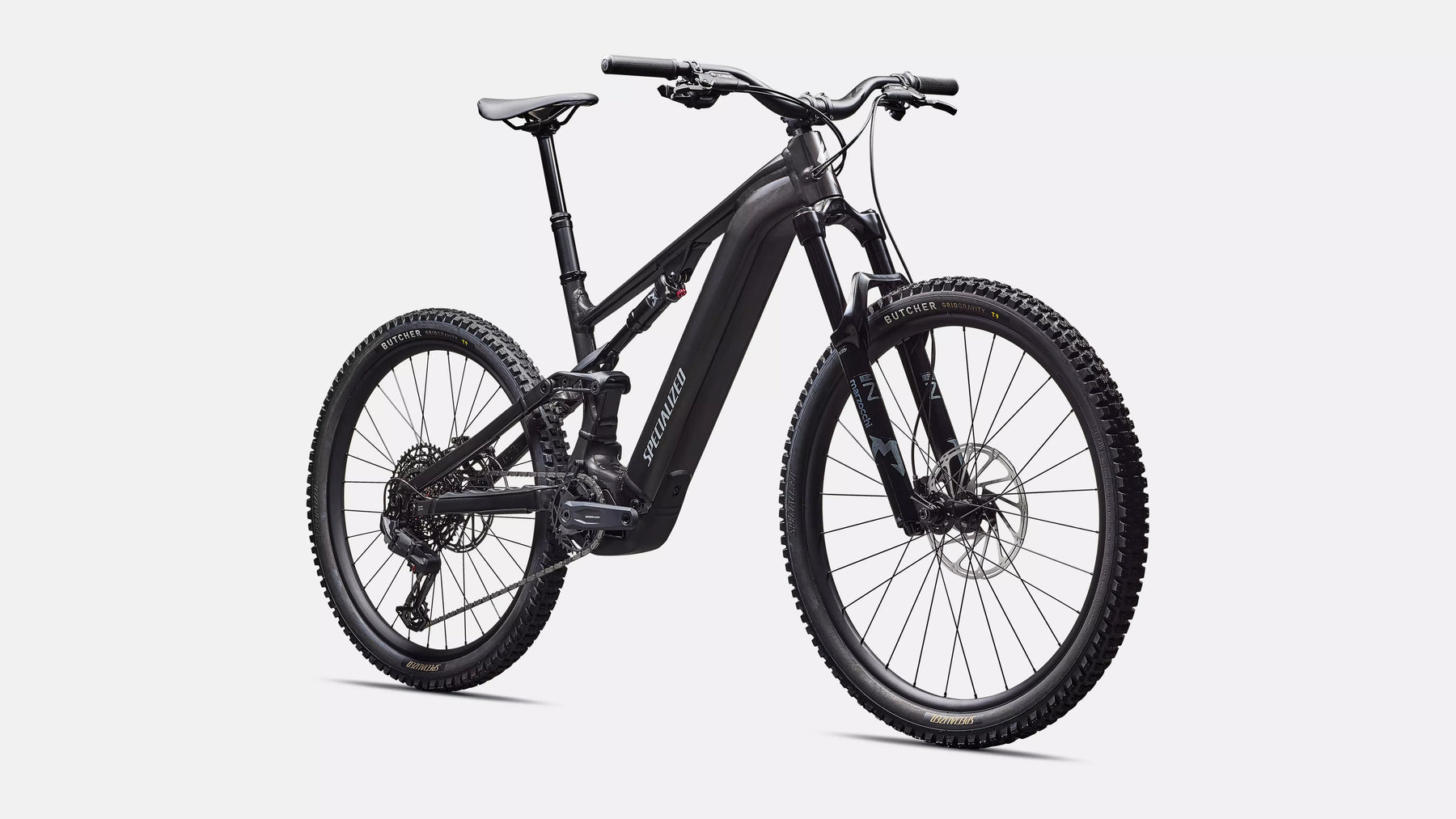

SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
101Nm Torque, 666W Power, 840Wh Battery
Super Frame
Experience performance born from over 40 years of trail bike expertise. The Levo 4 chassis combines 150mm of optimized rear travel, adjustable geometry, first of its kind e-MTB downtube SWAT storage, and more—all engineered with passion by riders for the ultimate ride.
Technical Specifications
E-Bike

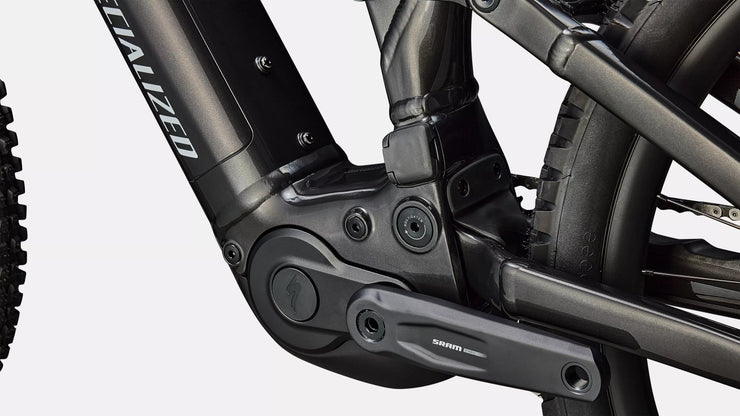

Motor
All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery
840Wh battery
UI/Remote

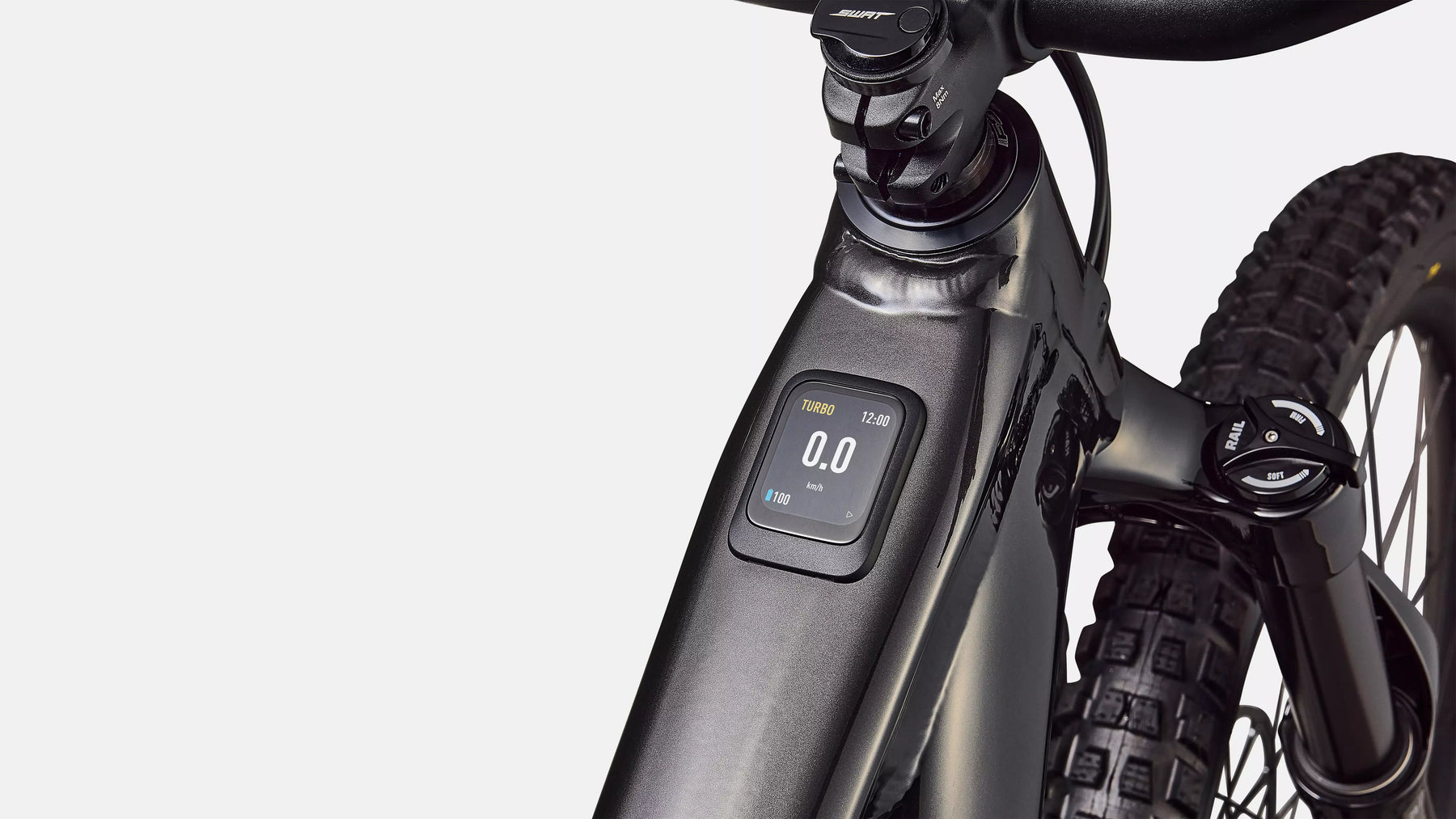

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension

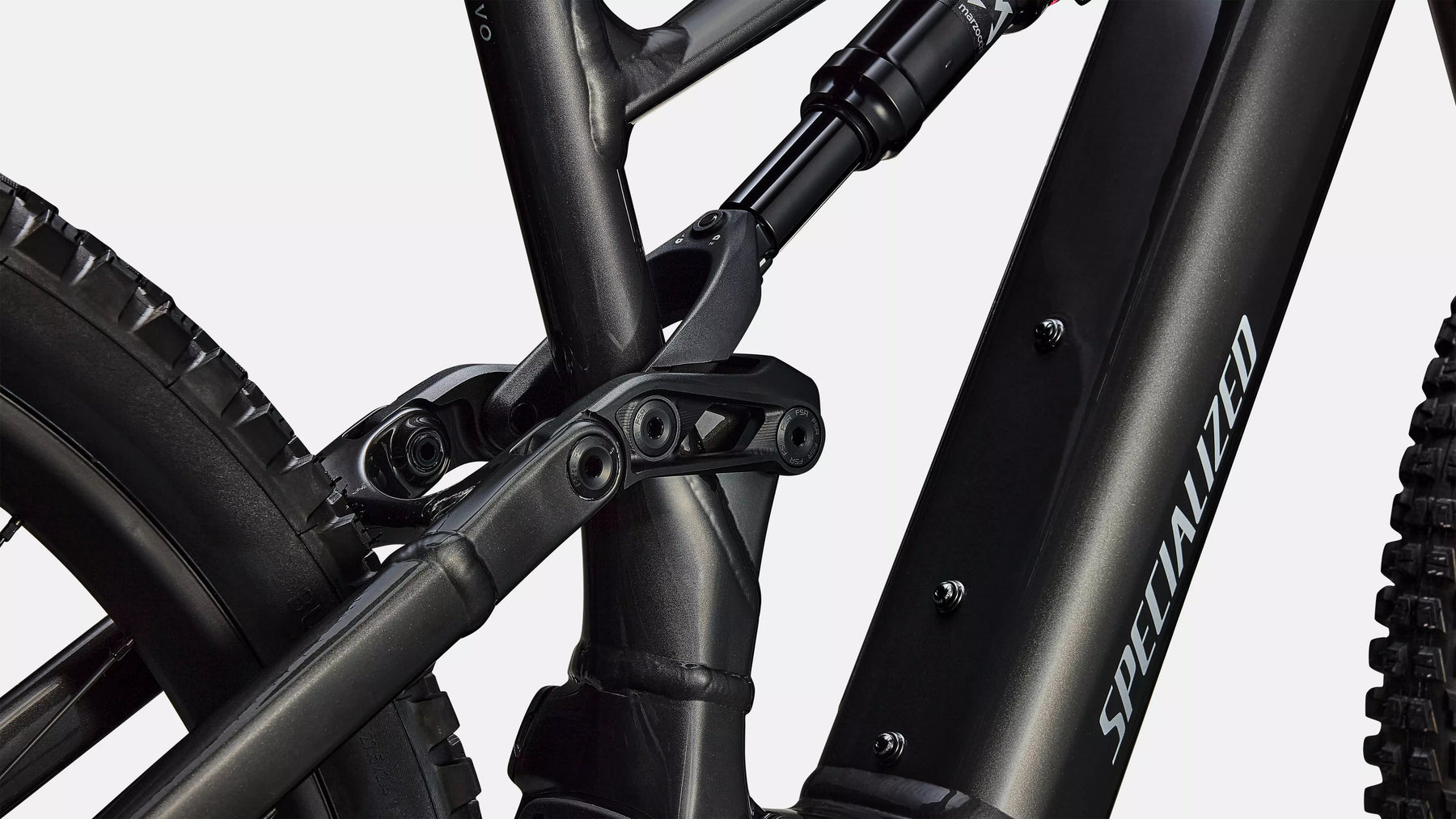

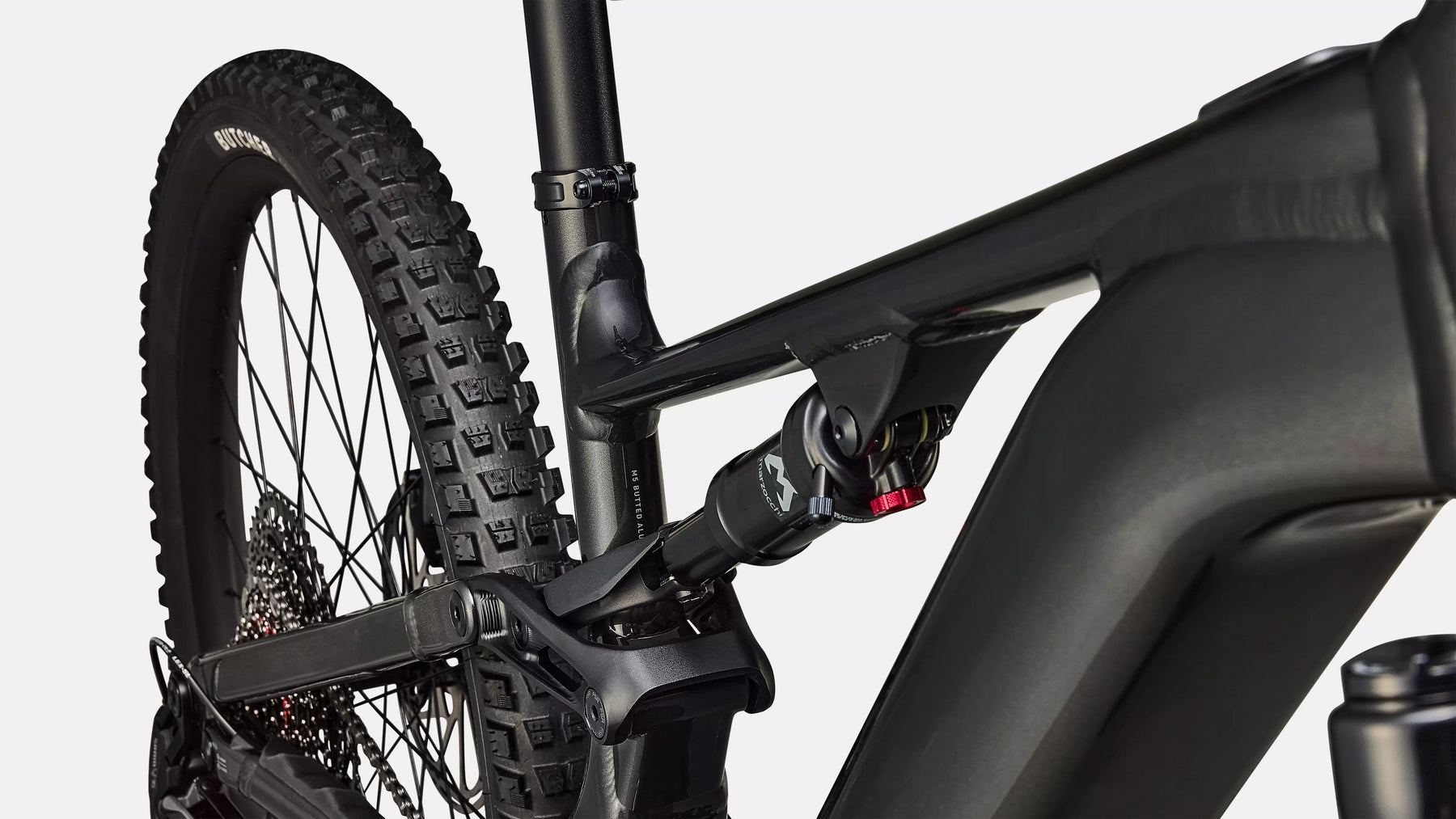

Rear Shock
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM 70 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
XS-1270, 12-speed, 10-52t
Chain
SRAM Eagle 70 T-Type Flattop Chain
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Inner Tubes
Standard, Presta valve

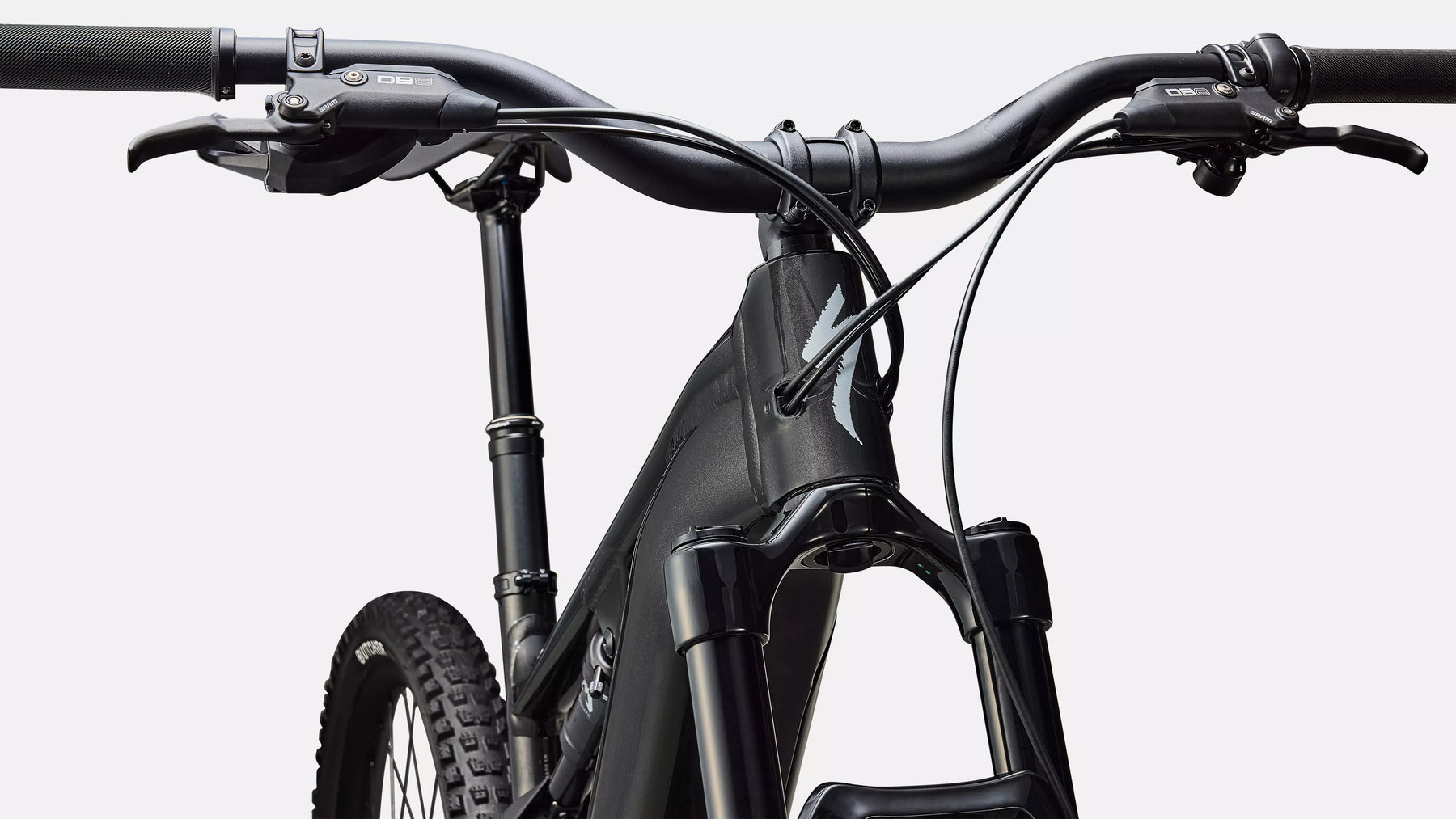

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Grips
Specialized Trail Grips
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
221347
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
26.08 kg (57 lb, 7.8 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
