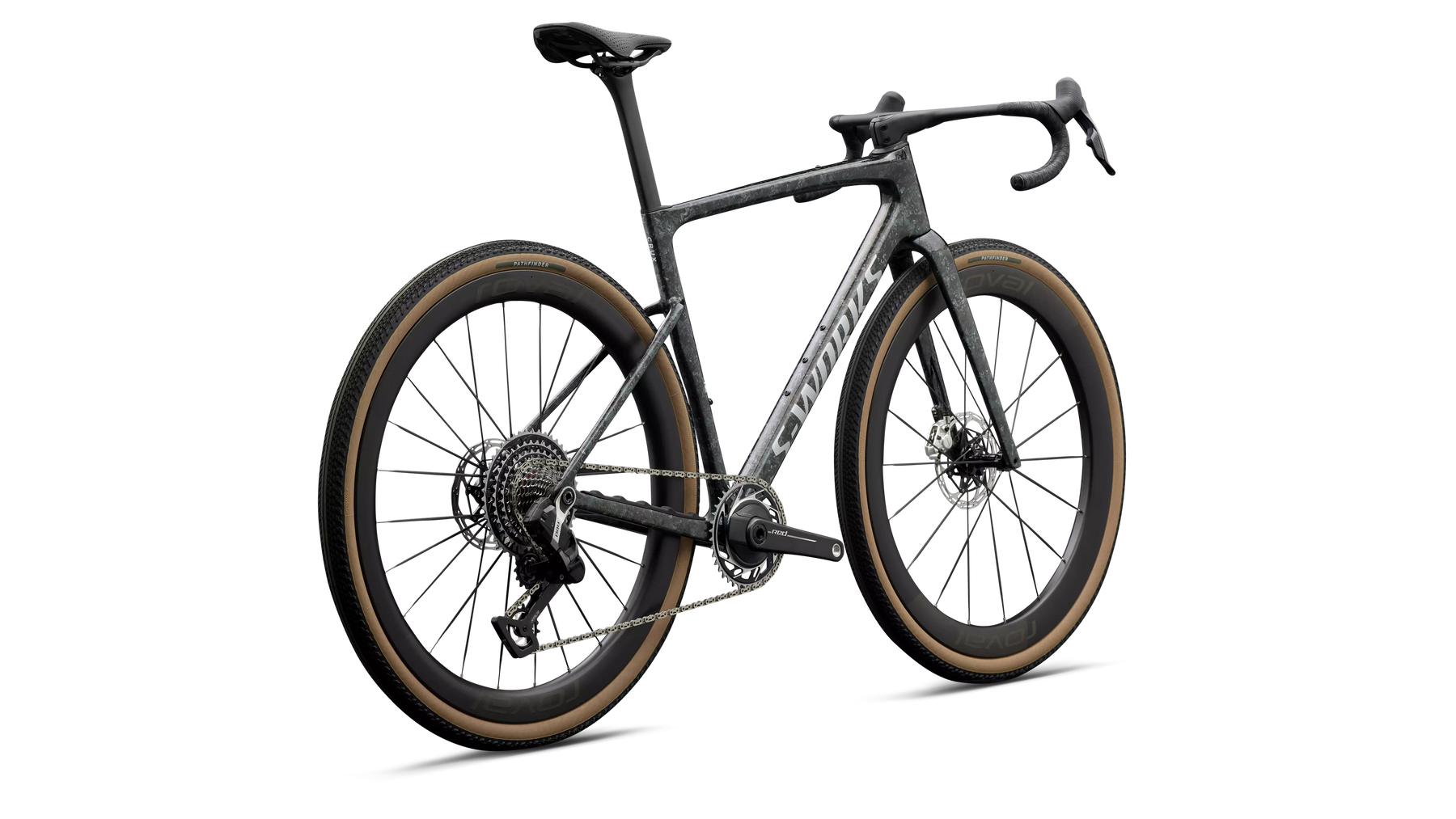

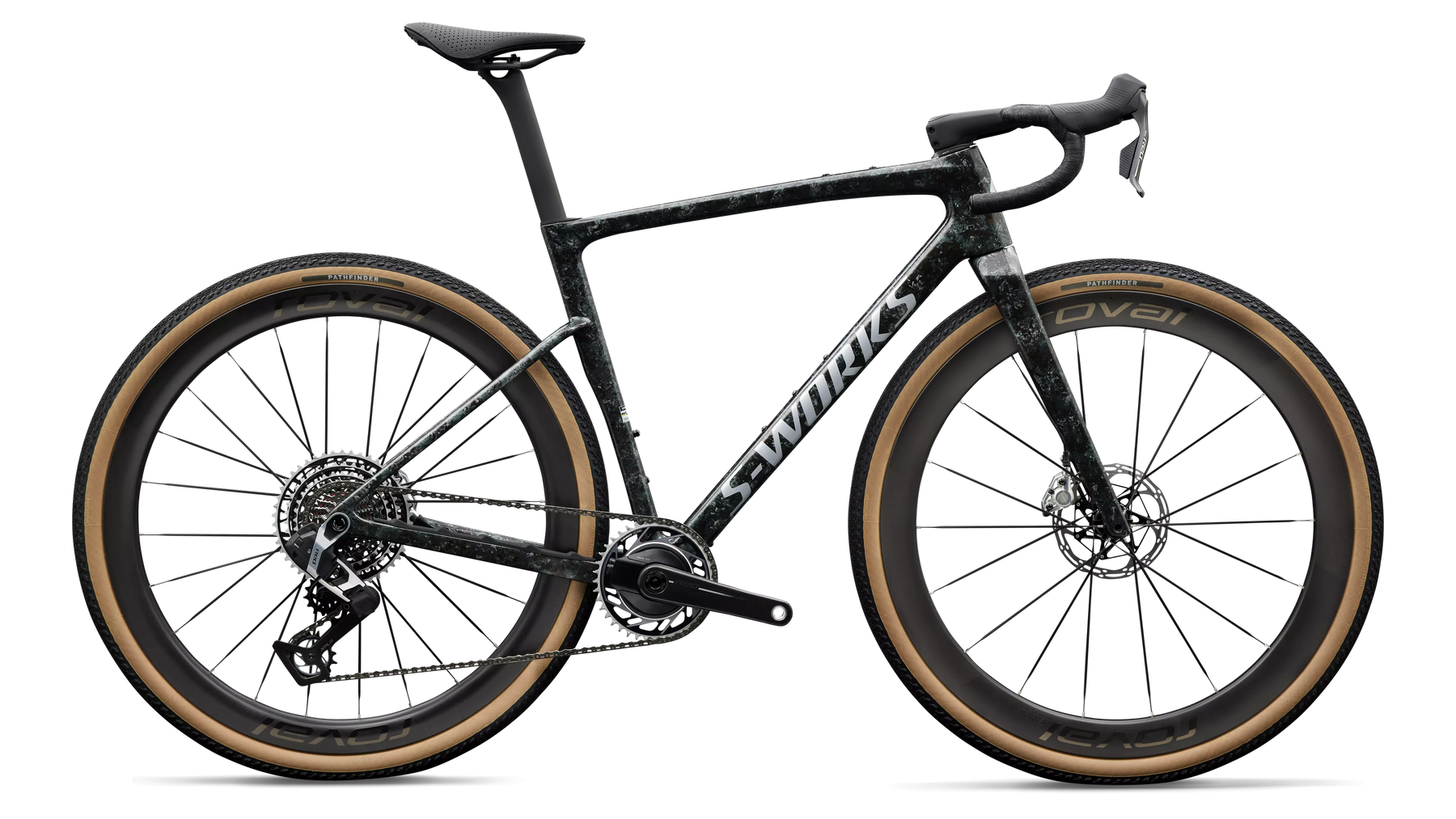

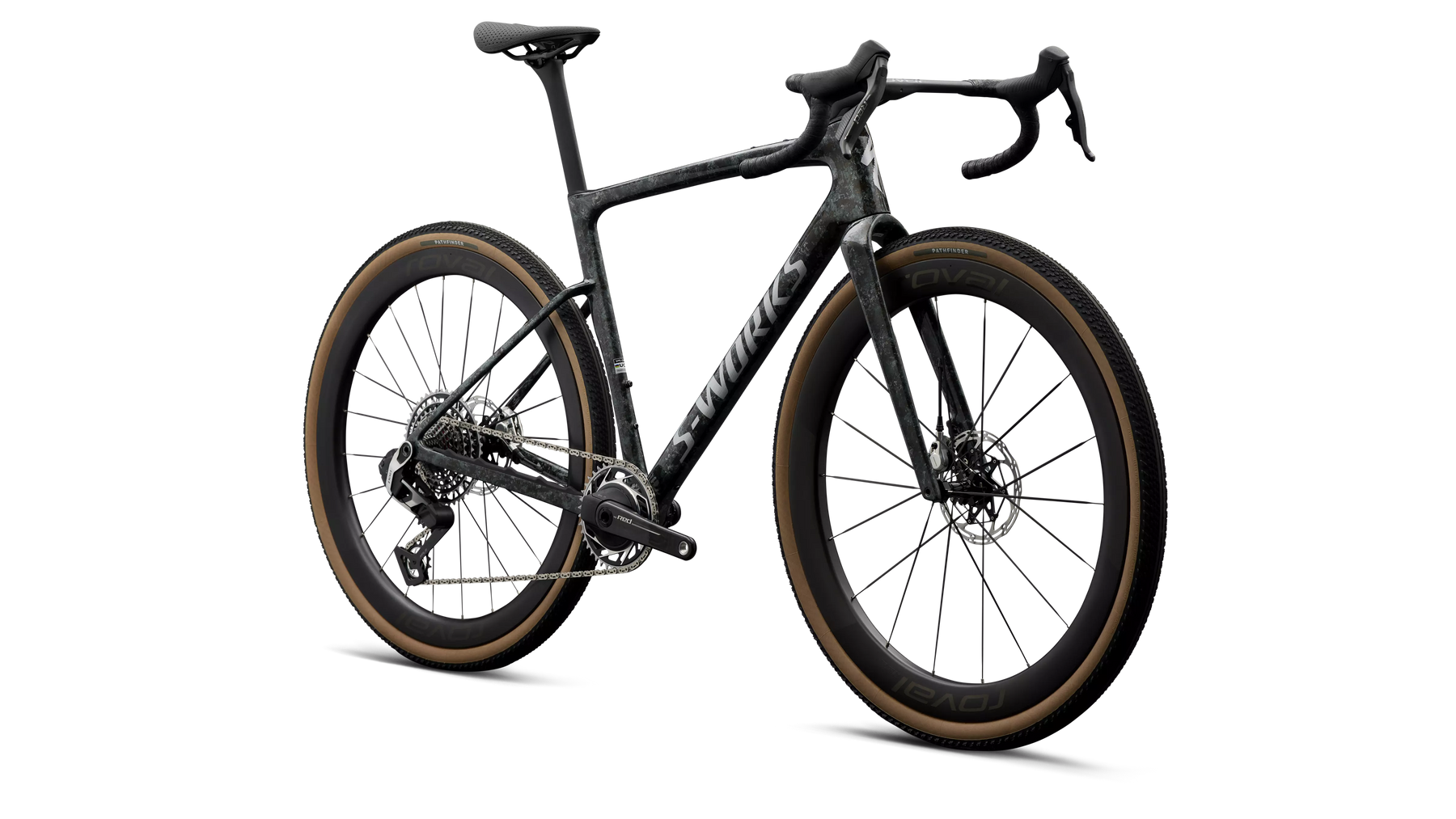

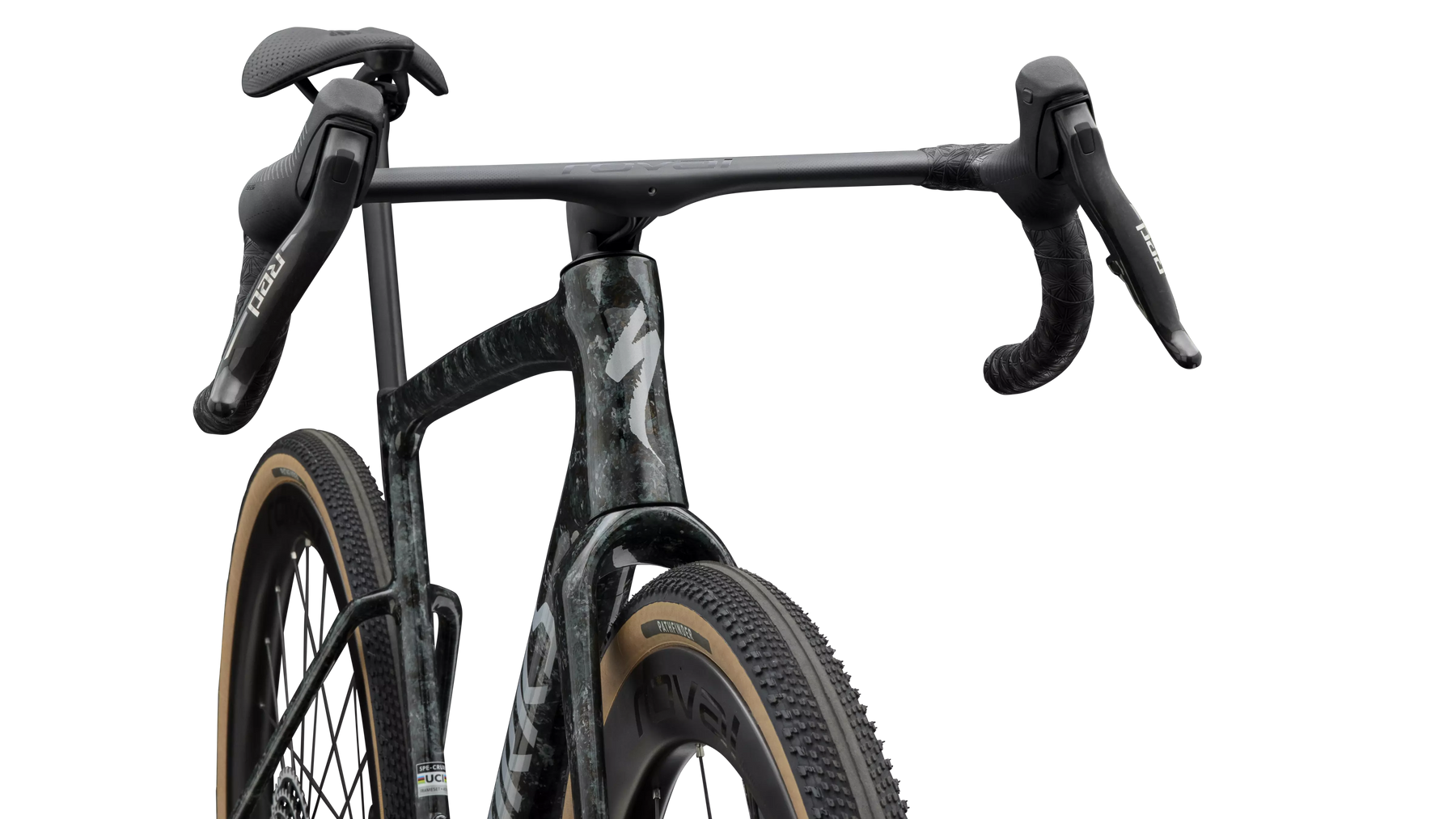

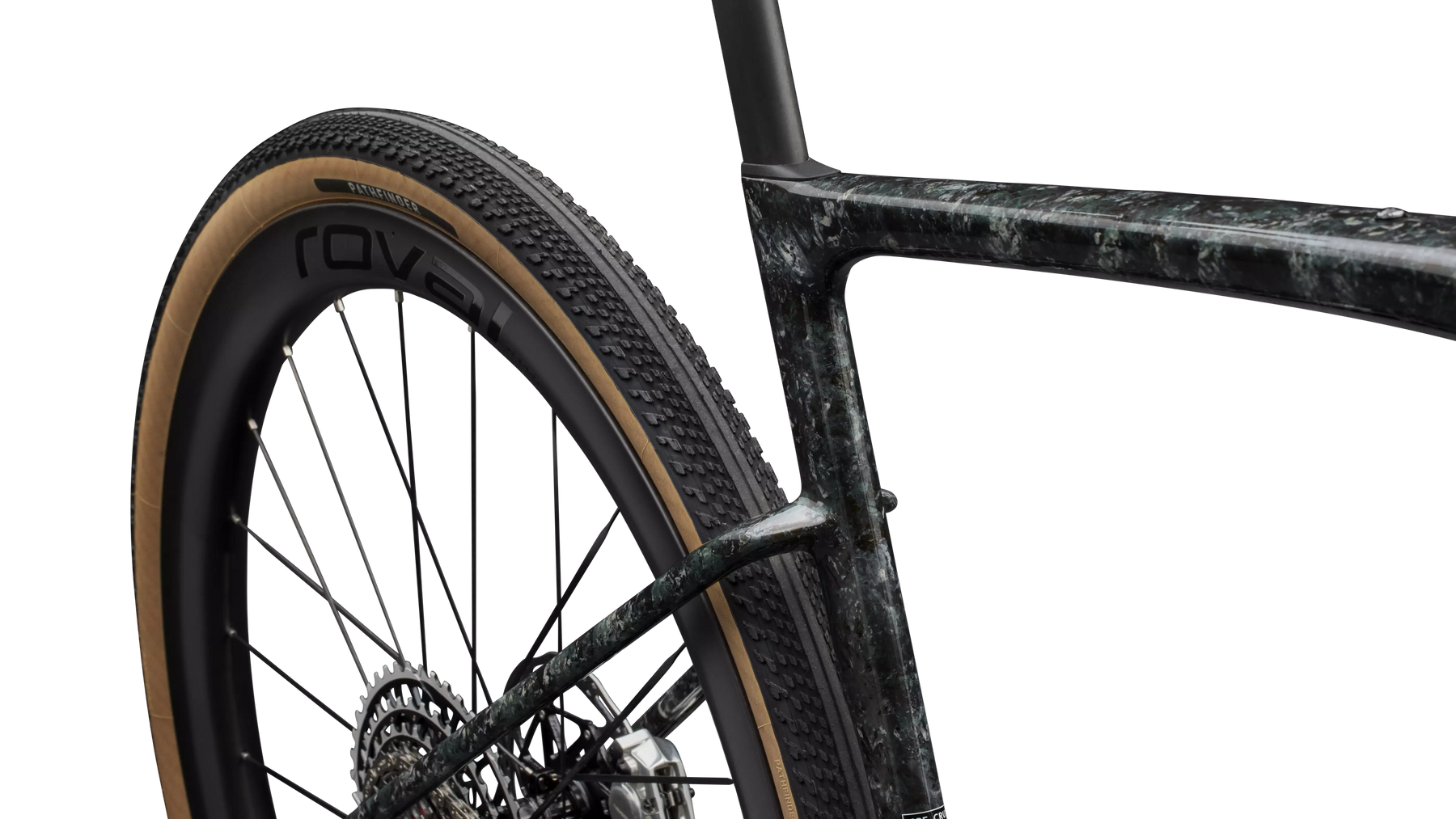

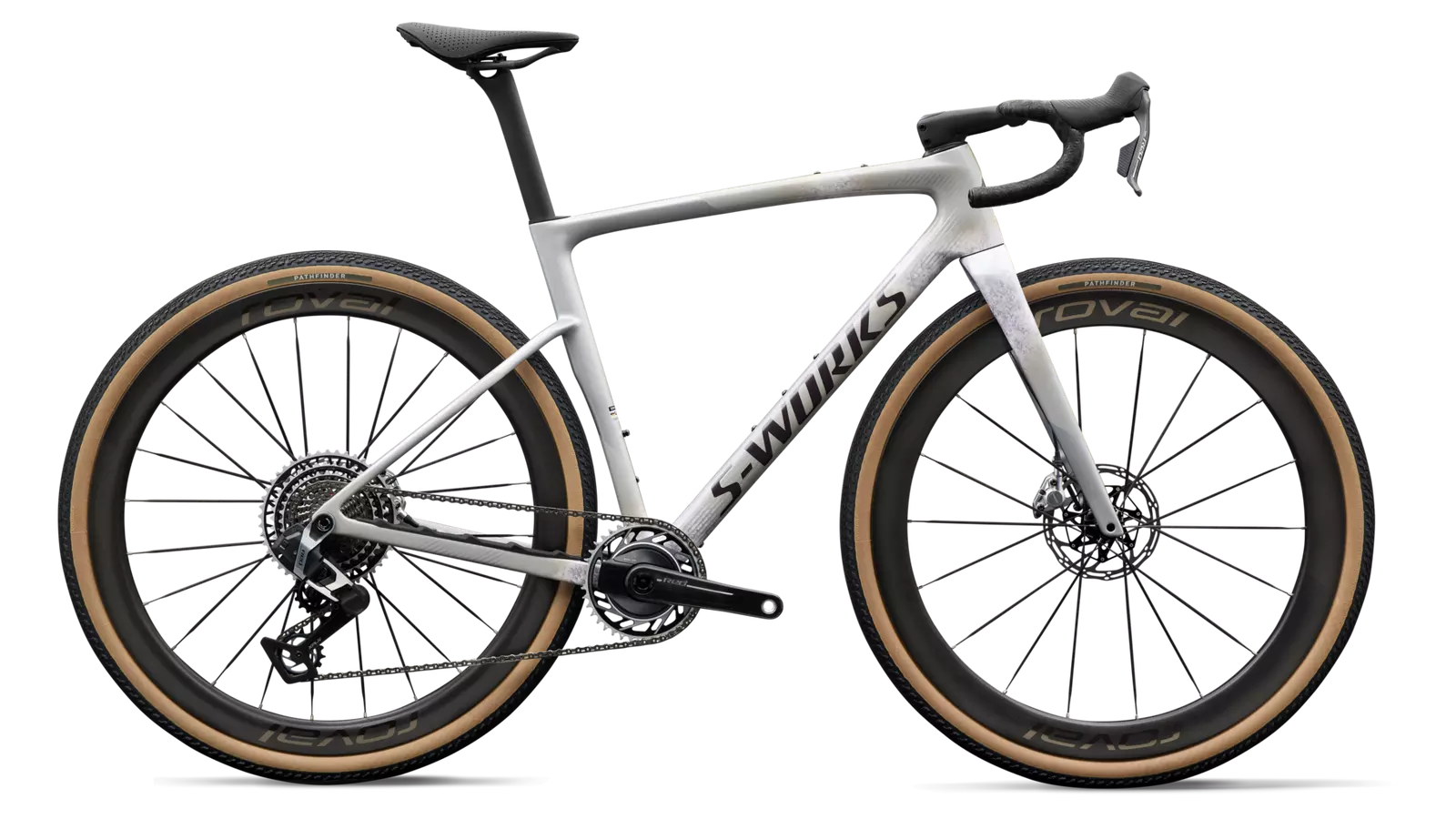

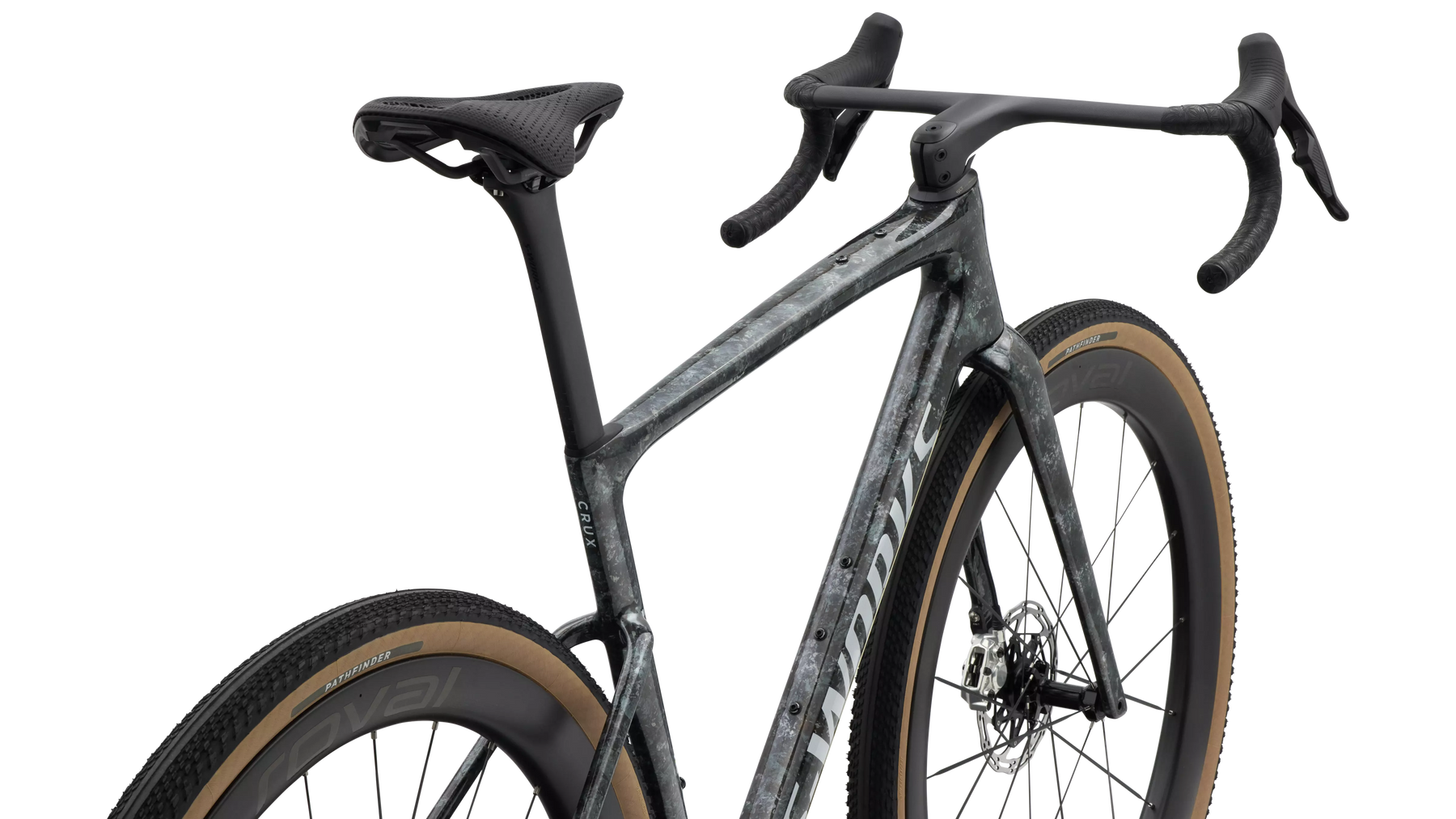

S-Works Crux 5
Item Not Instore*
S-Works Crux 5
Eat My Dust
The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.
At a Glance
Use
Gravel Racing
Frame
FACT 12r Carbon: 789 grams
Wheels
Roval Terra Aero CLX
Cockpit
Roval Terra Integrated
Drivetrain
SRAM RED XPLR
Weight
7.1 kg
Technical Specifications
Frameset
Frame
S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
SRAM RED E1, hydraulic disc
Rear Brake
SRAM RED E1, hydraulic disc
Drivetrain
Shift Levers
SRAM RED AXS E1, hydraulic disc
Rear Derailleur
SRAM RED AXS XPLR E1, 13-speed
Cassette
SRAM RED XPLR E1, 13-speed, 10-46t
Chain
SRAM RED E1
Crankset
SRAM RED XPLR E1, Quarq power meter, 40t
Bottom Bracket
Ceramic Speed BB Alpha, BSA DUB
Wheels & Tires
Front Tire
Pathfinder 700x45, Tubeless Ready
Front Wheel
Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
Rear Tire
Pathfinder 700x45, Tubeless Ready
Rear Wheel
Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
Inner Tubes
700x32-50mm, 60mm Presta valve
Cockpit
Handlebars
Roval Terra Cockpit, Integrated Bar/Stem
Tape
Supacaz Super Sticky Kush
Saddle
S-Works Power with Mirror
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
Seat Binder
Integrated Wedge
Product Details
Product ID
294828
Weight
Weight
7.1 kg (15 lb, 10.4 oz)
Weight Size
56
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
