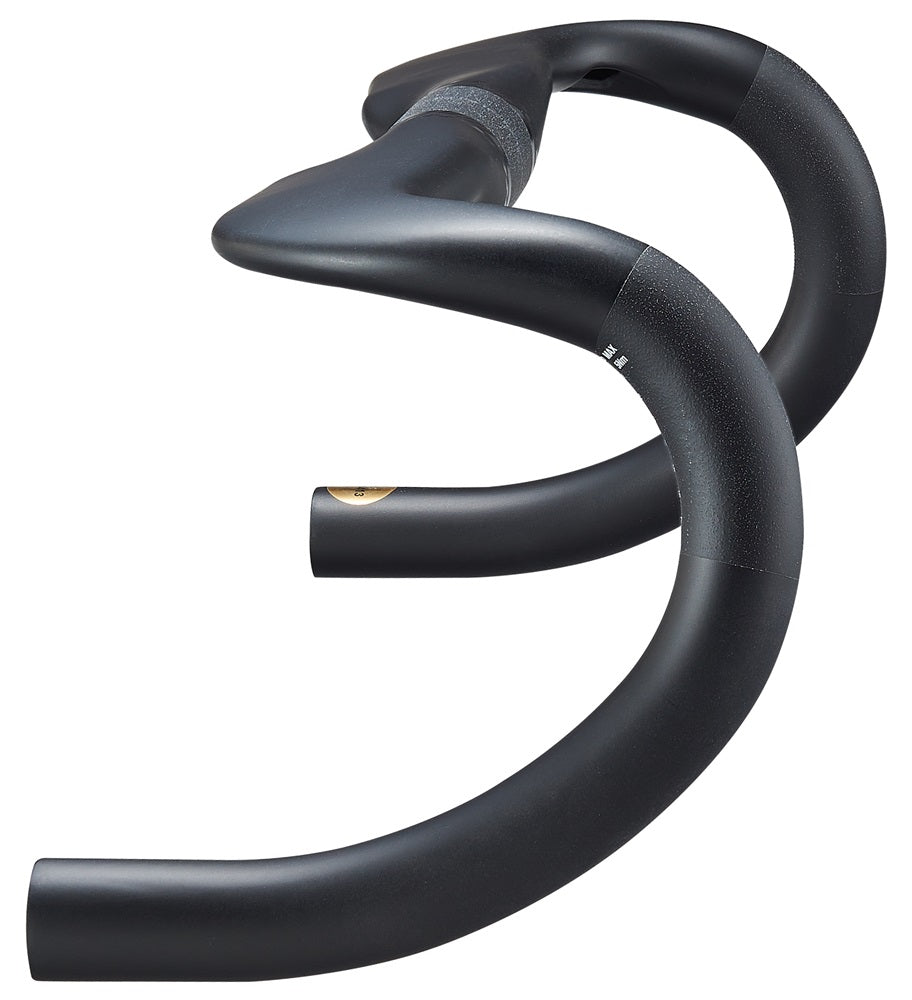

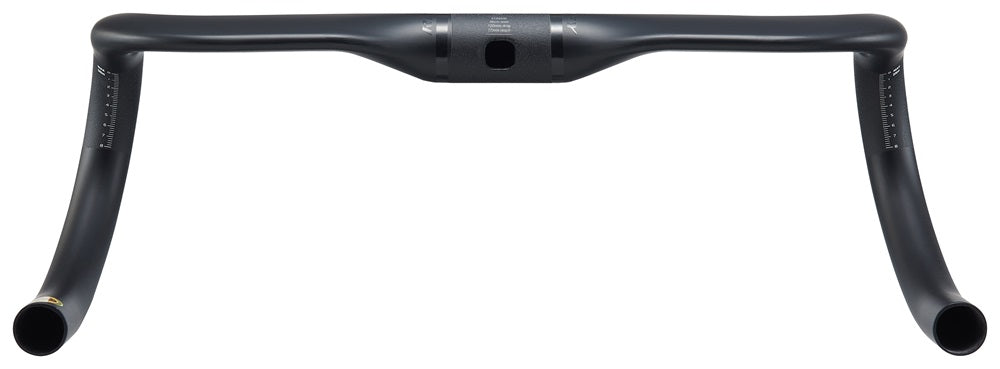

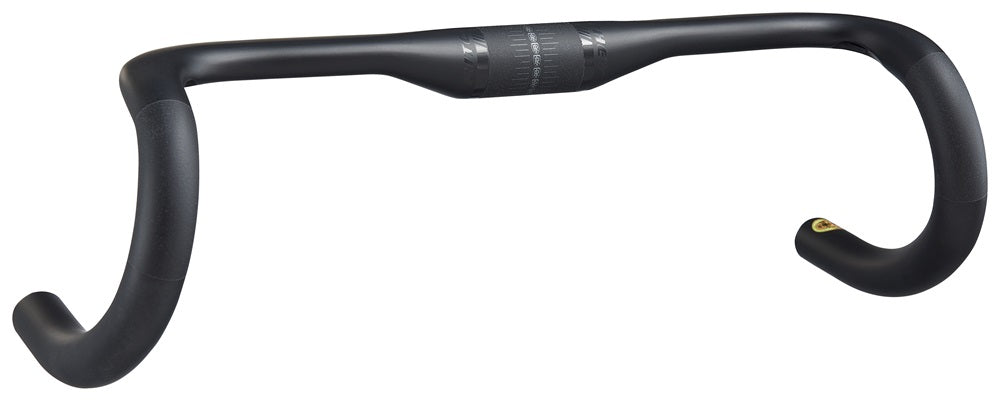

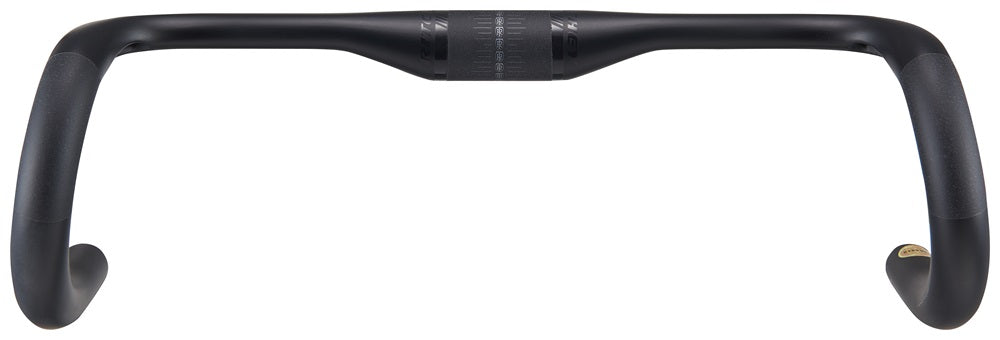

Ritchey SuperLogic Streem handlebar
The SuperLogic Streem has been engineered to accommodate the modern rider’s aero positioning for optimal power output with watt savings.

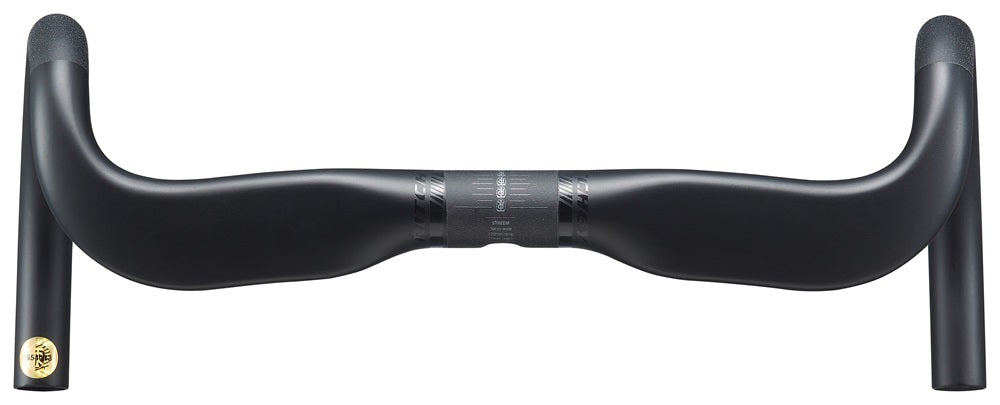

The aerodynamic top section subtly sweeps 5-degrees to meet the narrower hood width before meeting a 10° drop flare that extends the bar’s total width in the drops by two centimeters on each side and provides critical stability for cornering and diving into curves.

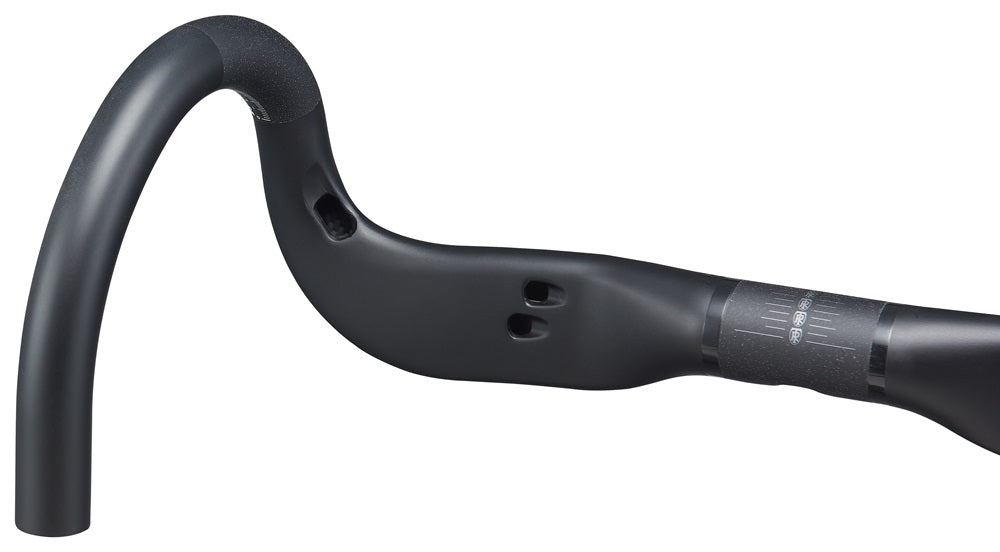

The SuperLogic Streem offers full internal cable routing from the levers to the headtube, or partial internal cable routing from the levers to the center section of the handlebar.
Other standout features include the bar’s UCI-compliant 43.5x16mm wing-shaped top section and no-slip grit at stem and brake lever clamp areas.
SPECIFICATIONS
• Material: carbon fiber
• Bend shape: compact
• Top section: aero
• Hood width/Drop width:
36/40cm
38/42cm
40/44cm
• Drop/Reach: 120/77mm
• Flare out: 10°
• Backsweep: 5°
• Clamp diameter: 31.8mm
• Accessory mount compatibility: no
• Clip-on compatibility: no
• Cable routing: full or partial internal (wider cable housing may interfere with routing) - compatible with Shimano EWRS910 junction box
• Lever/shifter torque: 5Nm (recommended)
• Stem clamp torque: 5Nm (max)
• Weight: 230g (38cm)
• Color: matte UD carbon finish
