FRCAK76065

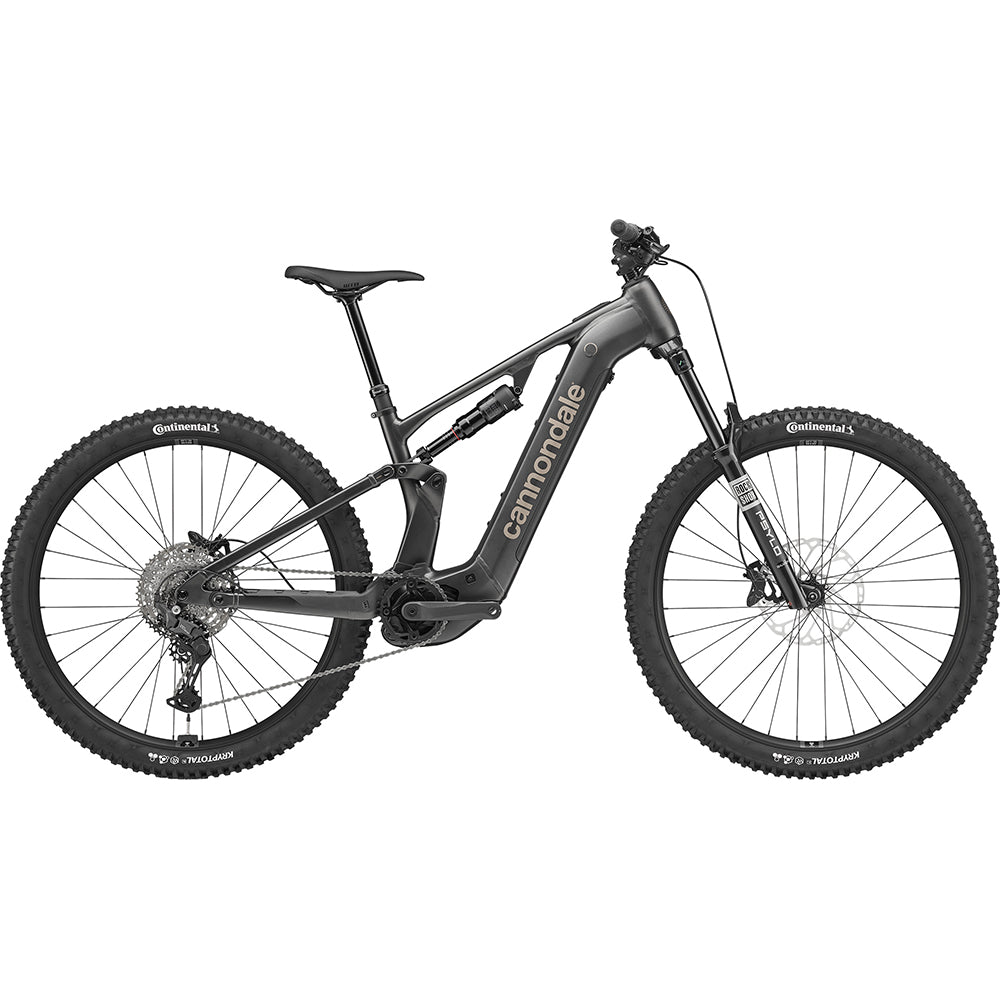

CANNONDALE MOTERRA ALLOY SPARES 2025+
SPECIFICATIONS
Drive System - Bosch Performance Line CX
Battery - Bosch PowerTube 800Wh
Rear Travel - 150mm
Head Tube - UPR: 1-1/2” LWR: 1.8”

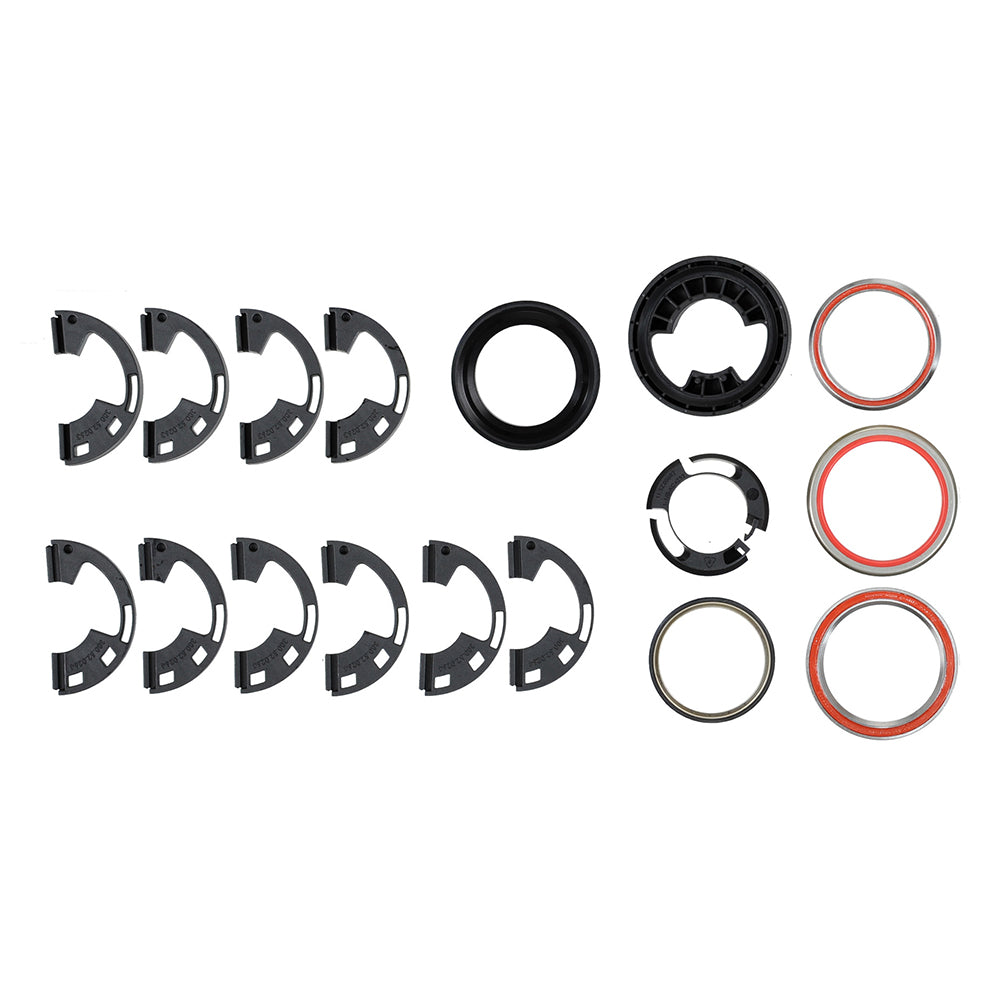

Headset - ZS56/28.6 Top, ZS66/40 or ZS66/46 Bottom 45 degree crown race
Bottom Bracket: Type / Width - Bosch Drive Unit
Front Derailleur - N/A
Seat Post: Dia./Binder - 34.9mm/39.7mm
Minimum Seat Post Insert - 100 mm
Maximum Frame Seat Post Insert Depth - SM: 250mm MD: 270mm LG/XL: 300mm
Tyre Size x Maximum Width - RR: 29”x 2.6”
Maximum Fork Length - 571mm
Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230x62.5mm/FT:M8x25, RR: N/A
Sag - 30% (17.3mm)

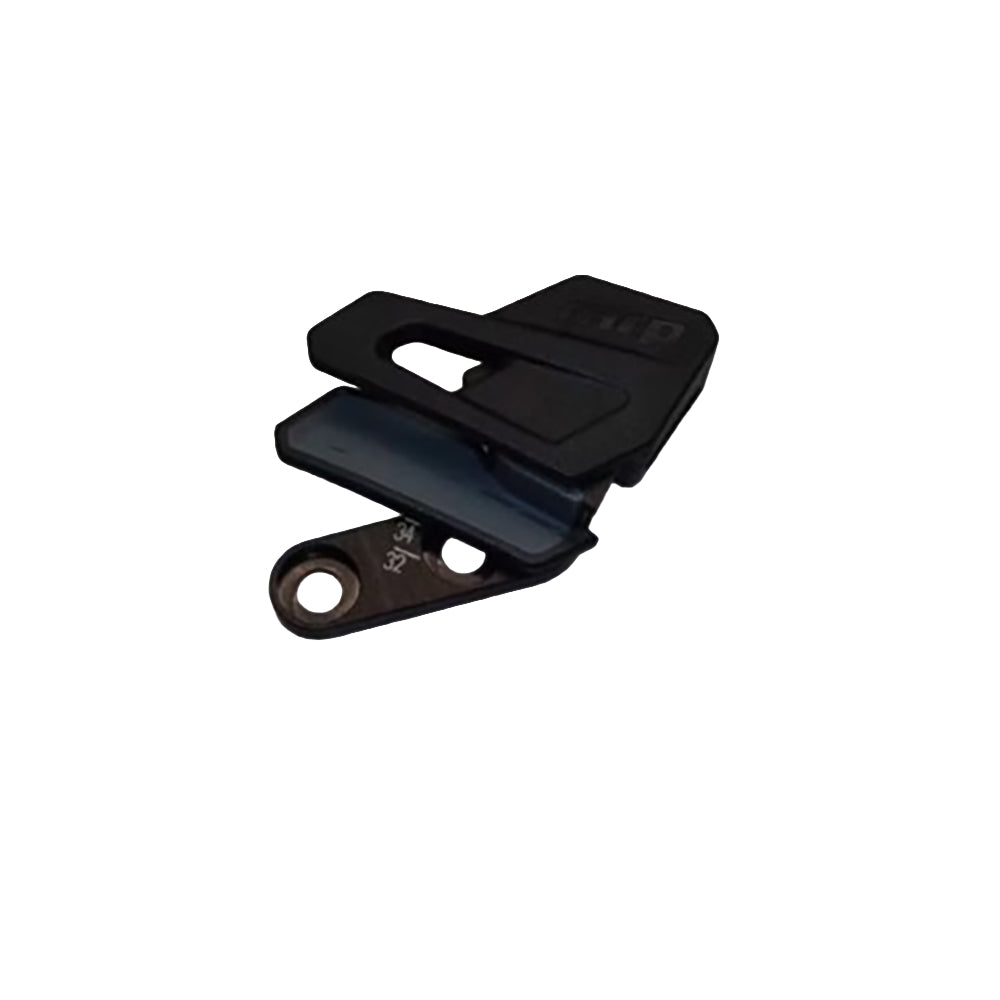

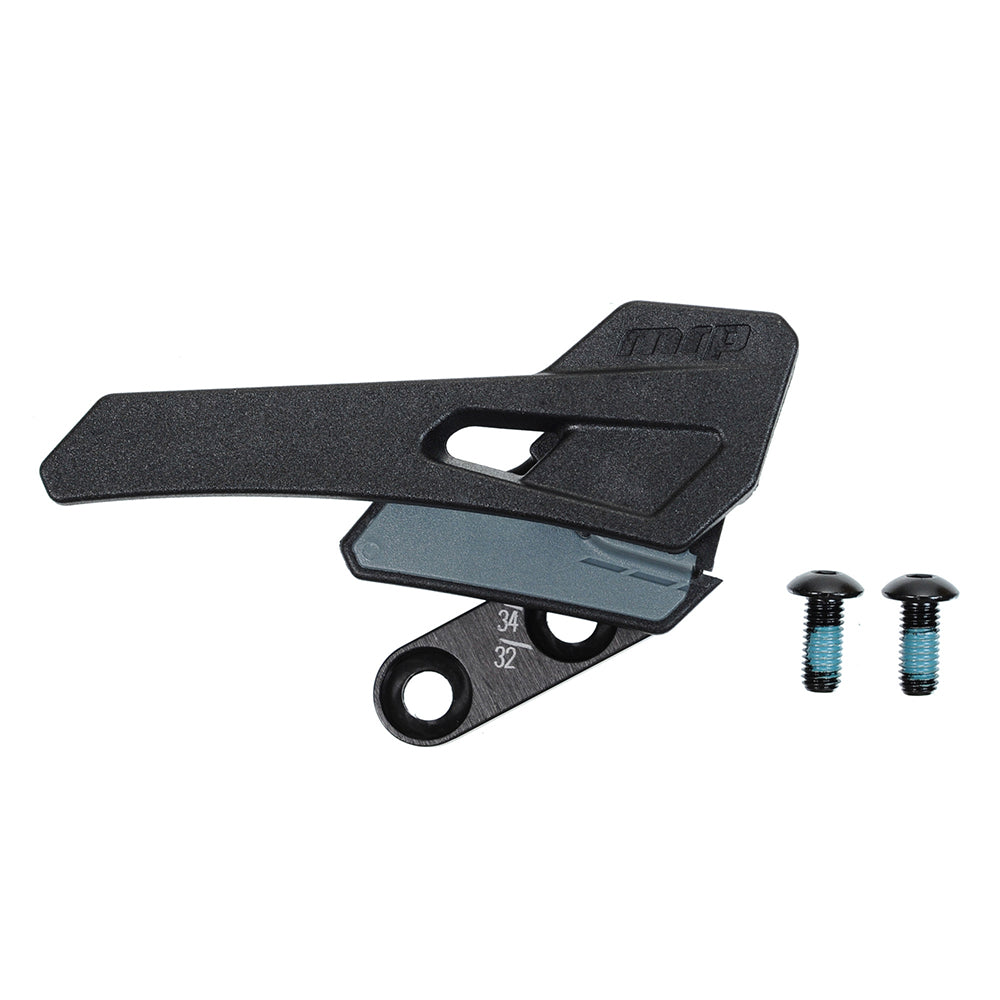

Chain Guide - K11115 Moterra MRP Chainguide XL Complete
Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount/200mm/220mm

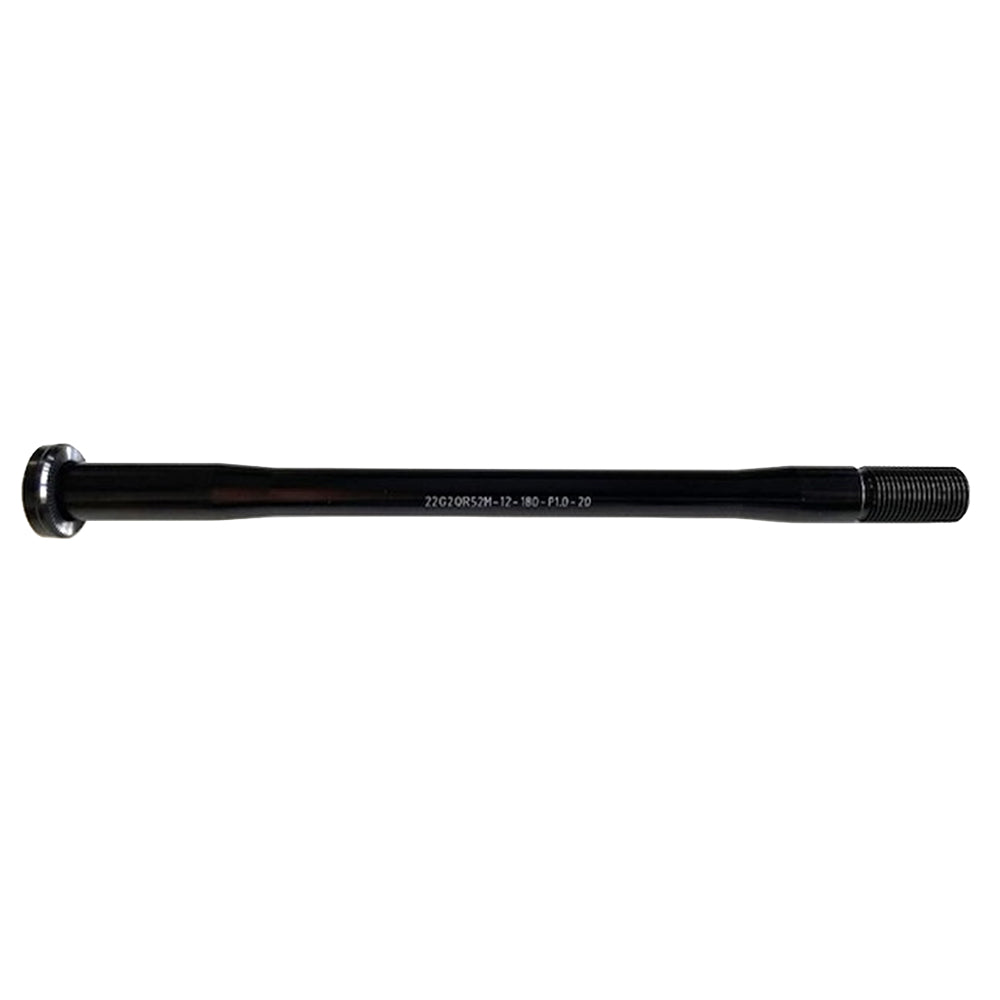

Axles: Type / Length - 148x12mm Maxle TA M12x1.0P, 180mm Overall Length
Maximum Weight Limit: Total - 138kg
