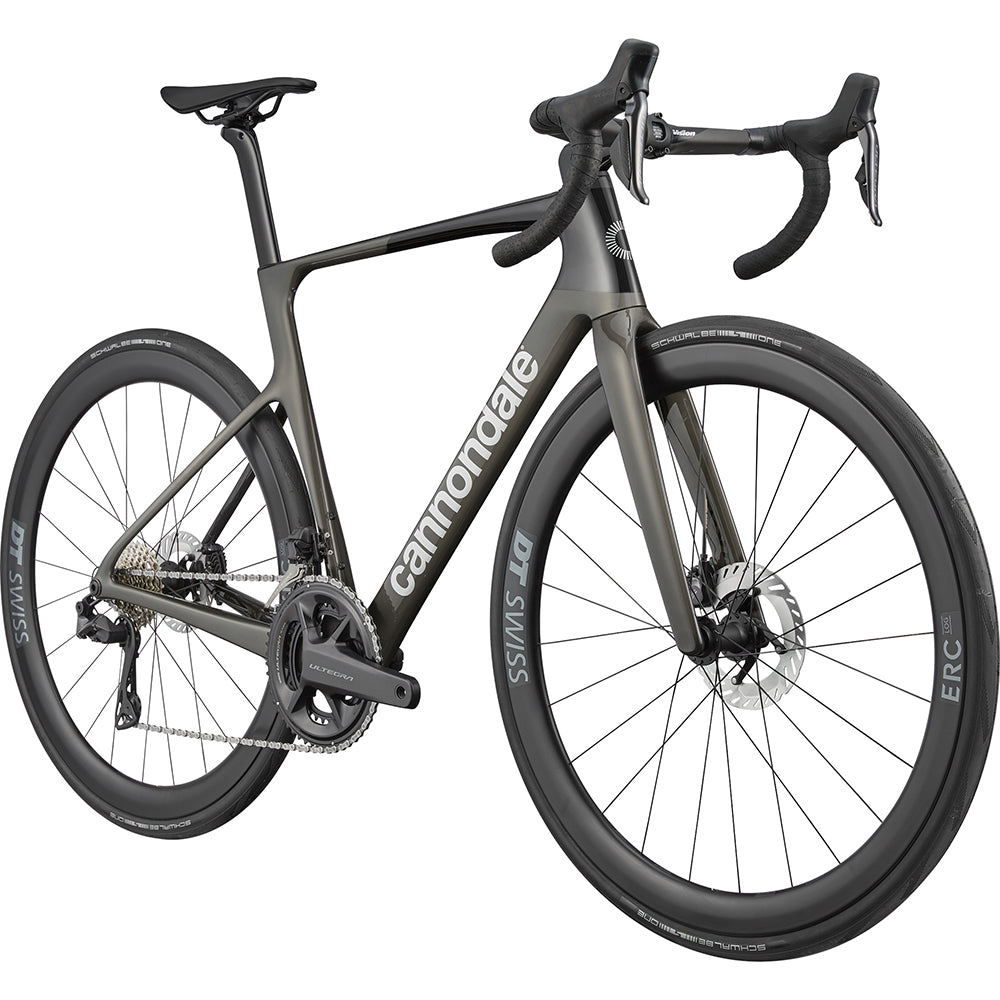

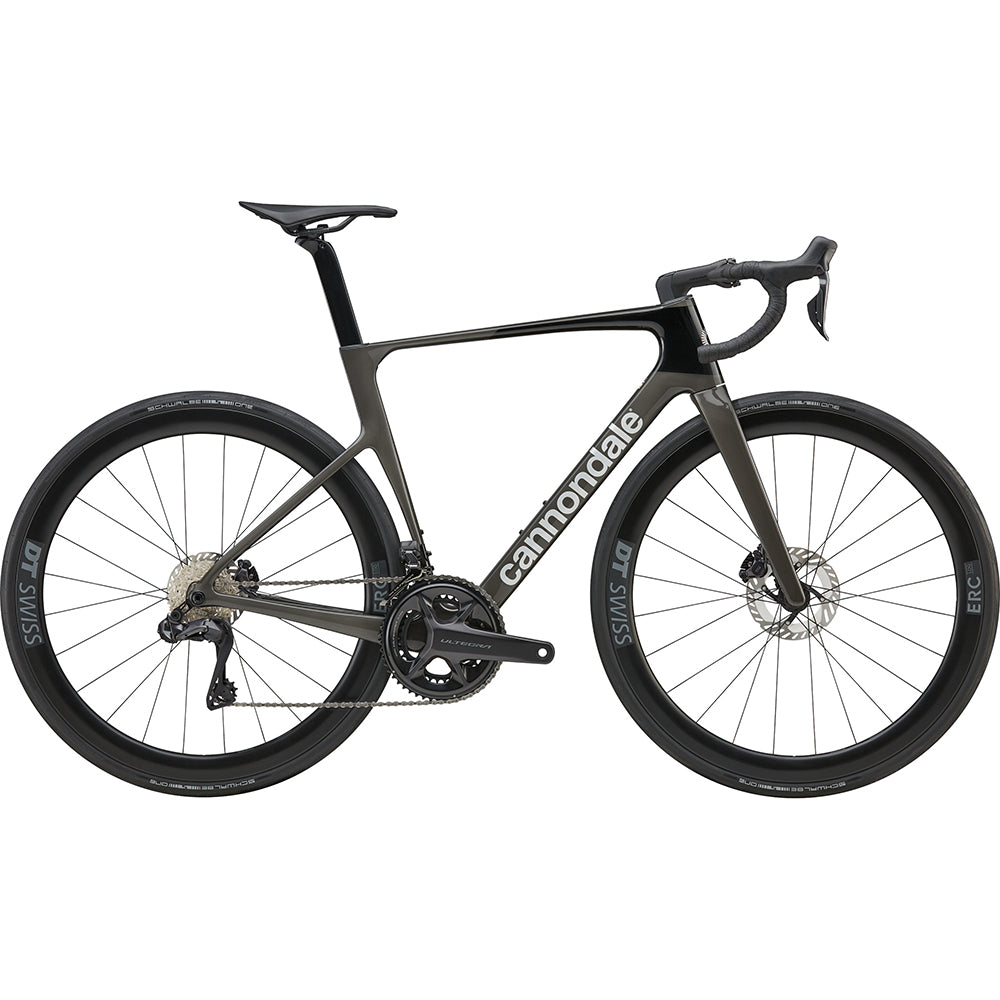

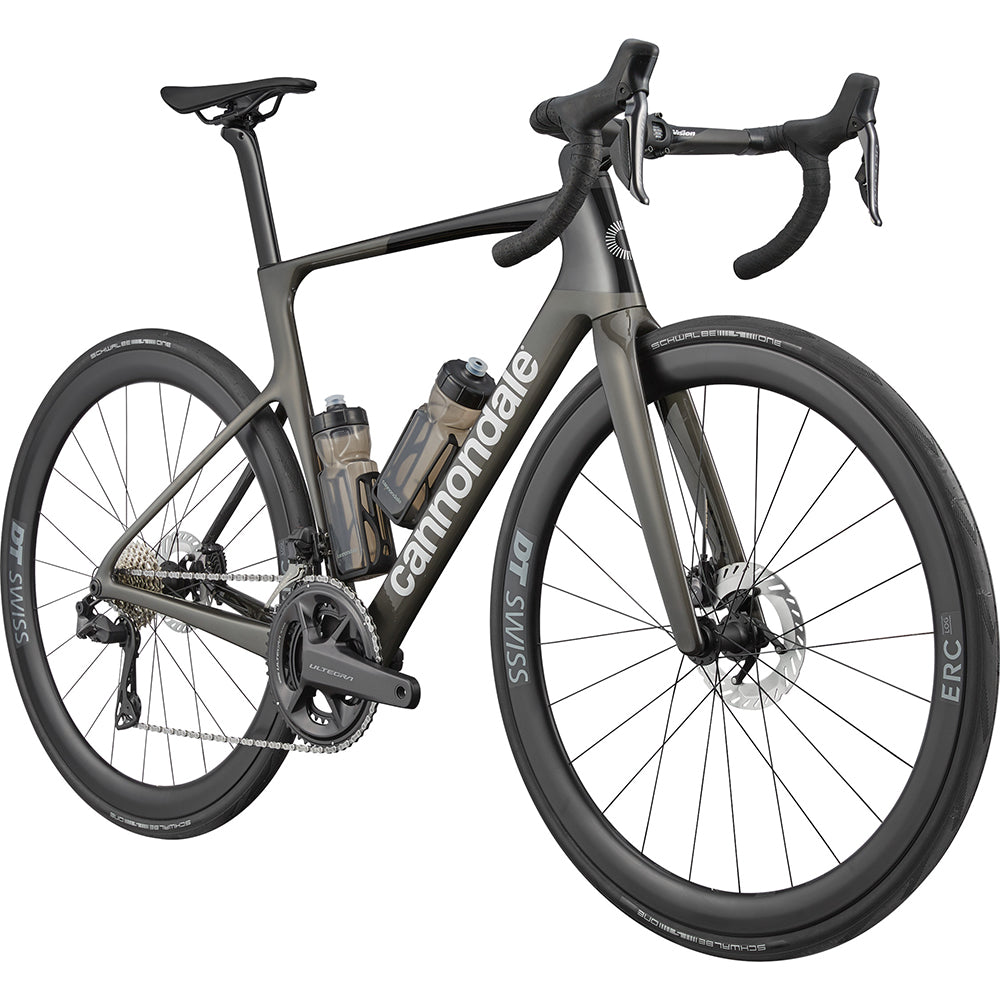

CANNONDALE SUPERSIX EVO 2 GEN 5
Faster Everywhere
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.
Model Description
Optimized speed for full-gas racing. The superlight Gen 5 carbon frame rolls on DT Swiss ERC LOG 45 carbon wheels with DT Swiss 370 hubs. Shimano’s Ultegra Di2 handles shifting with electronic precision. Vision Trimax Carbon Aero bars and Cannondale C1 Conceal stem shape a low, efficient front end, while Ultegra hydraulic discs stay predictable when pace compresses and corners come in hot. Built to make the surge stick.
Specifications
Frame SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Fork SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Rims DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Hubs (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Spokes DT Swiss Competition
Tires Schwalbe One TLR, 700x28c, tubeless ready

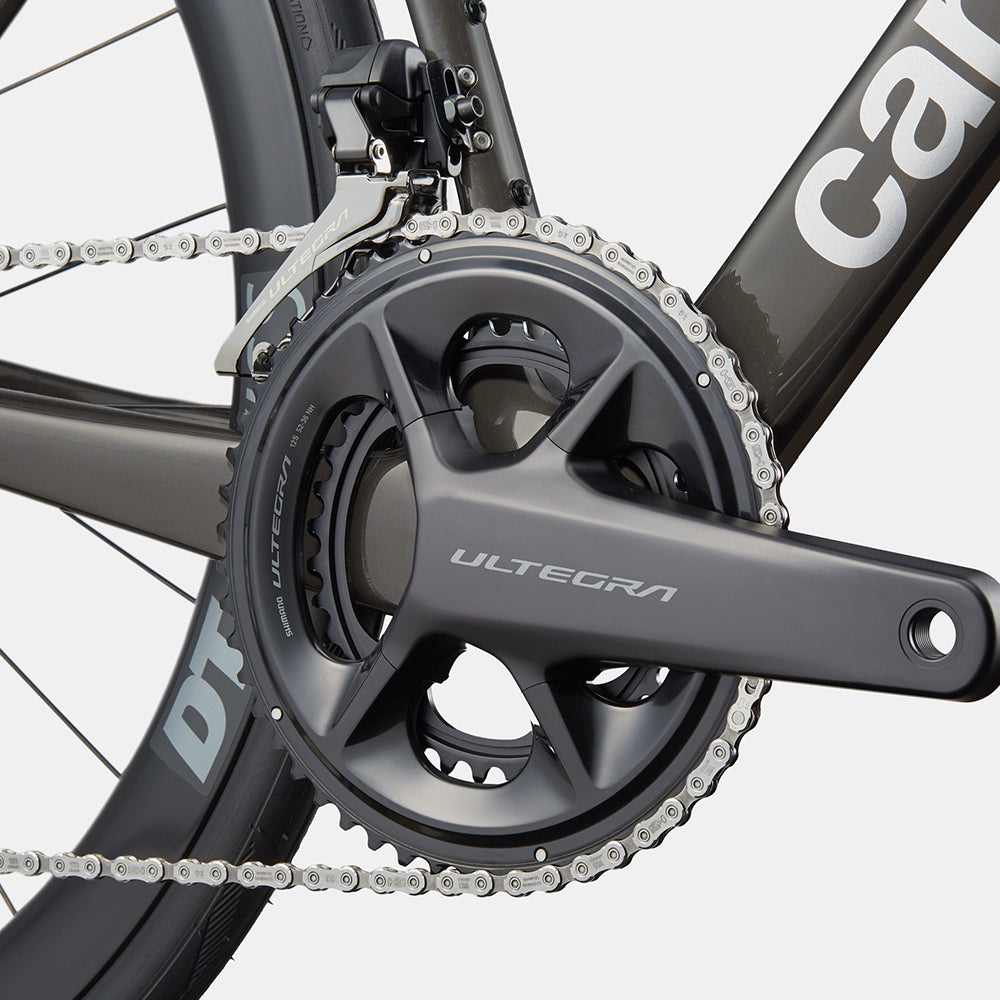

Crank Shimano Ultegra R8100, 52/36: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Bottom Bracket Shimano BB-RS500, BSA 68
Chain Shimano Ultegra, 12-speed
Rear Cogs Shimano Ultegra R8100, 11-30, 12-speed
Front Derailleur Shimano Ultegra Di2 R8150

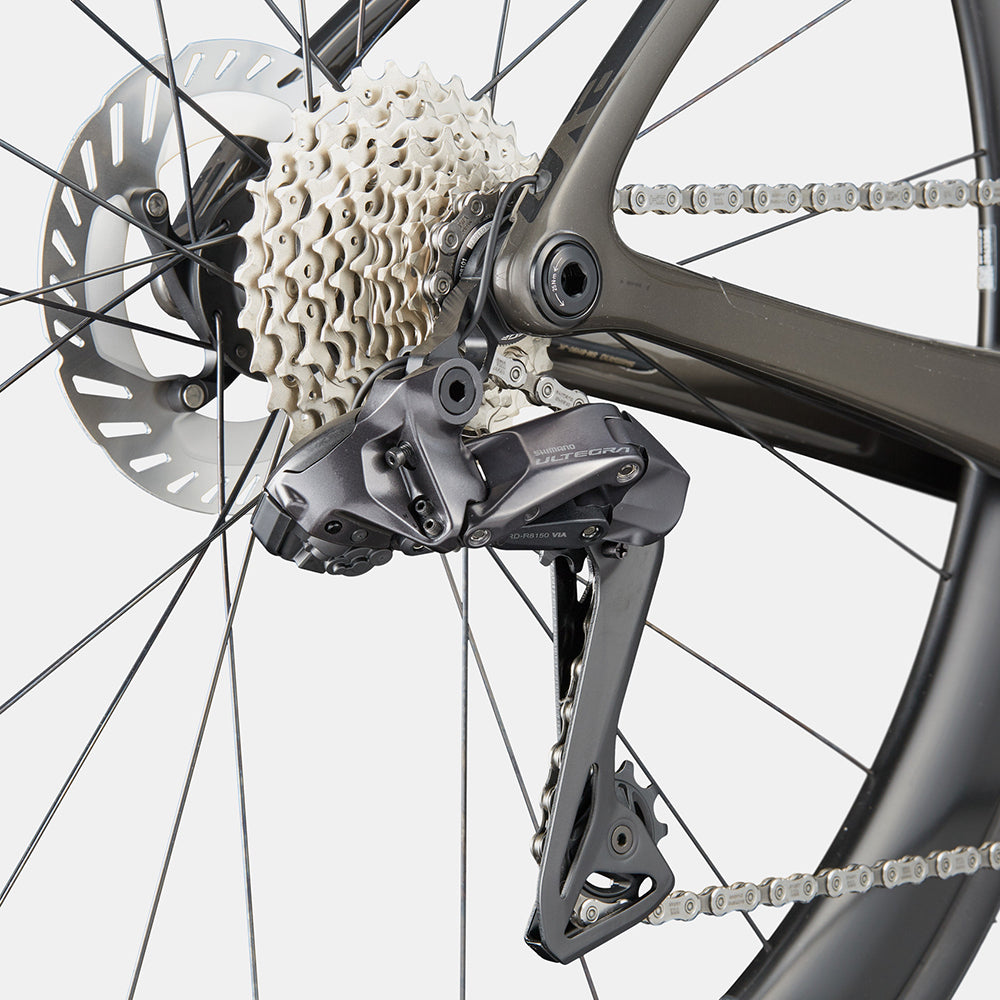

Rear Derailleur Shimano Ultegra Di2 R8150, 12-speed

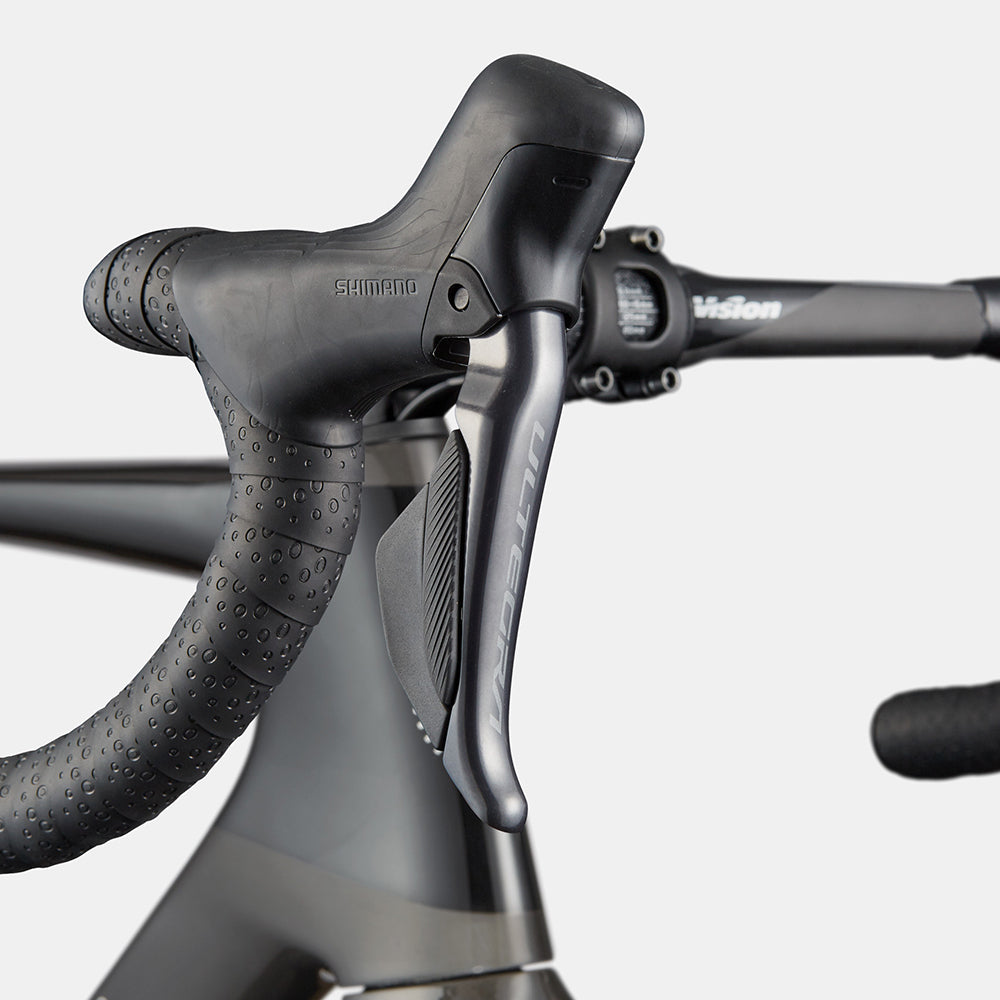

Shifters Shimano Ultegra Di2 R8170, wireless, 2x12-speed

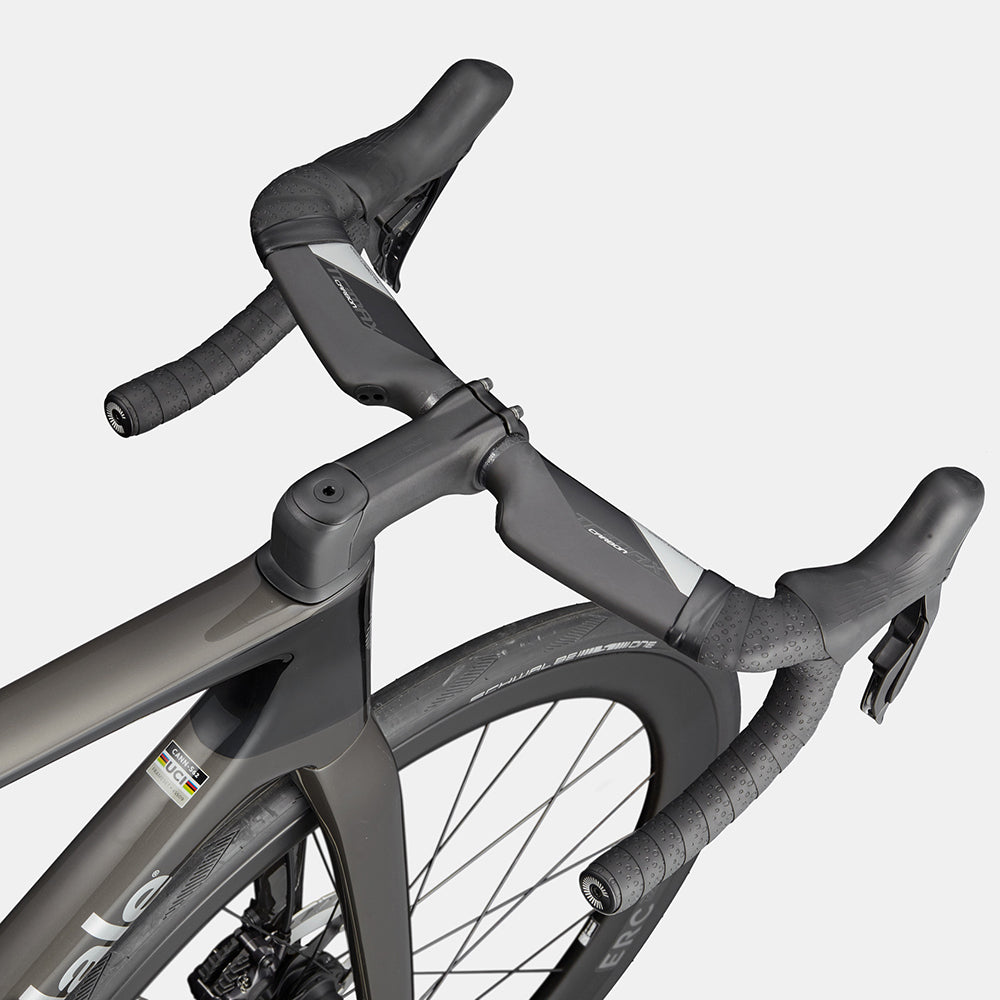

Handlebar Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
Headset Integrated, 1-1/8" - 1-1/4"
Brakes Shimano Ultegra R8170 hydraulic disc, 160/140mm CL800 rotors
Brake Levers Shimano Ultegra Di2 R8170 hydraulic disc
Saddle Fizik Vento Antares R5, S-Alloy rails, 140mm
Seatpost Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
Extras Tubeless valves, Shimano EC300 charging connector, Conceal Stem accessory/computer mount (Garmin/Wahoo)
