AMFLOW PR CARBON
Regular price$8,599.00
Item Not Instore*

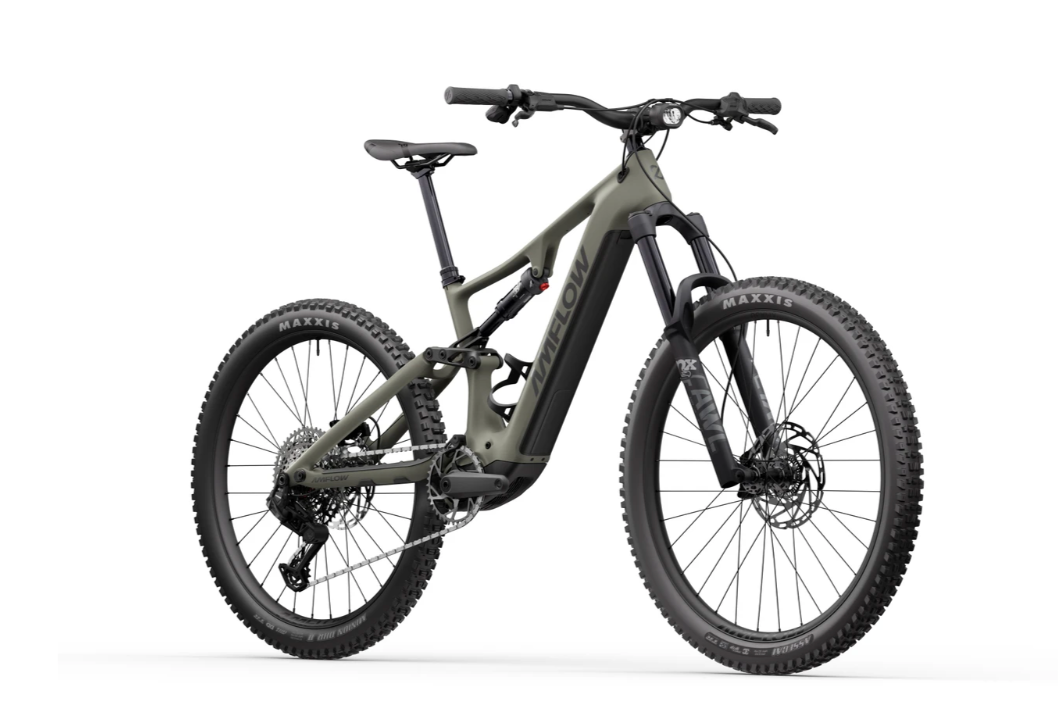

Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to 150N·m of torque and 1500W of peak power on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.
Geometry Design
Flexible Adjustment, Effortless Control
Geometry, Tuned to the Terrain
Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.
With a default head tube angle of 64.5°, the adjustable headset cups offer 5 levels of fine-tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high-speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
With a default head tube angle of 64.5°, the adjustable headset cups offer 5 levels of fine-tuning (-1°, -0.5°, 0°, +0.5°, +1°). A slacker setting increases trail for greater high-speed stability and a reduced risk of going over the bars. A steeper setting improves agility and climbing efficiency while making the bike less prone to understeer.
A bottom bracket height adjustable to two positions—349 or 353mm—lets you adapt precisely to different terrain. The 353mm high setting helps you clear rough obstacles with confidence and reduces the risk of bottoming out, while the 349mm low setting lowers the bike's center of gravity for stronger cornering grip. Combined with the Horst pivot flip-chip adjustment, the bottom bracket height range is up to 16.41mm.
The 4-position adjustable chainstay (440mm to 452mm) offers flexible geometry tuning while accommodating 29-inch wheels, delivering outstanding rollover capability.

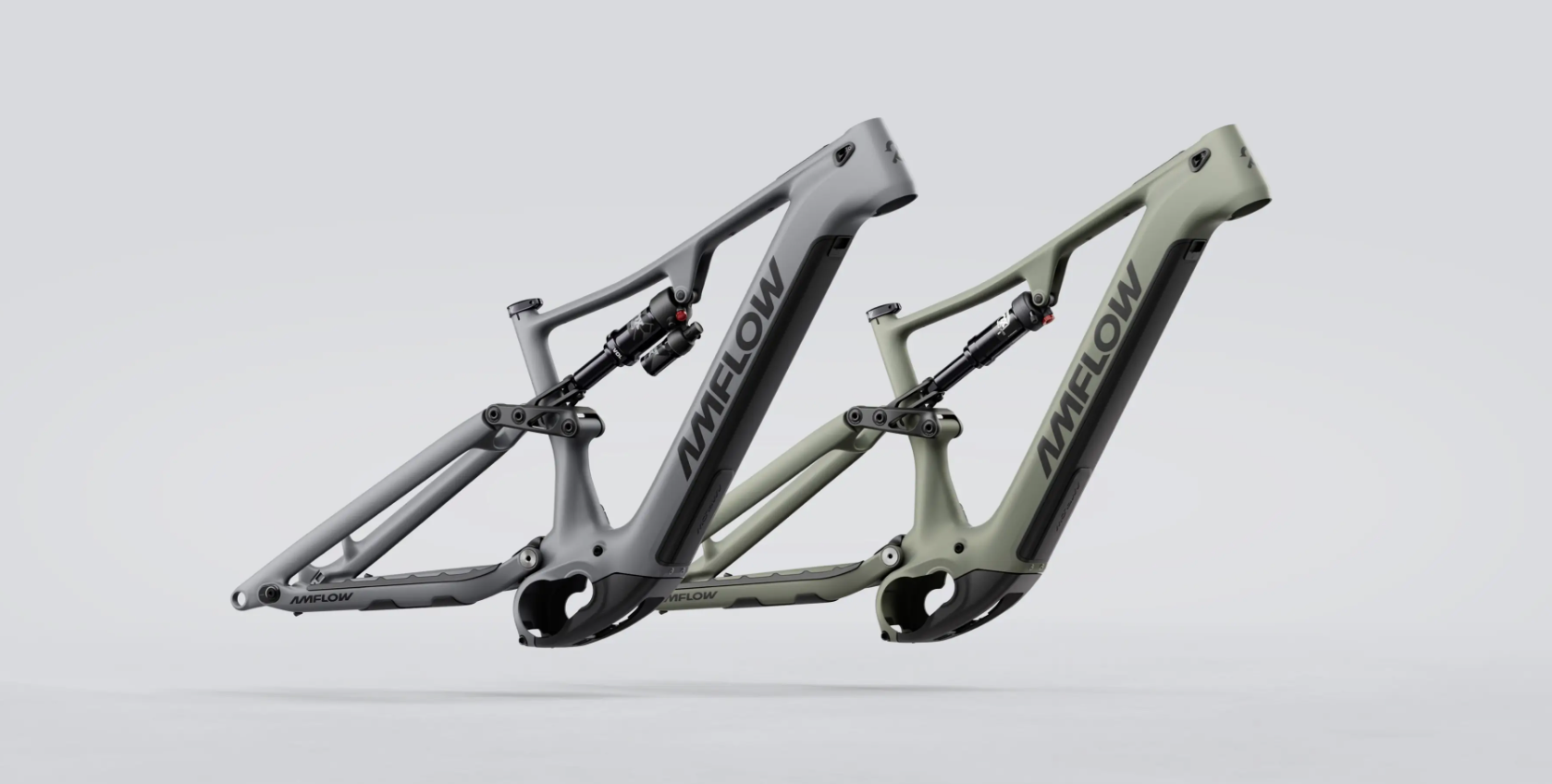

Ultra-Light Carbon Fiber Frame, Easy Handling
The Amflow PR frame weighs around 2.9kg [3], yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.
