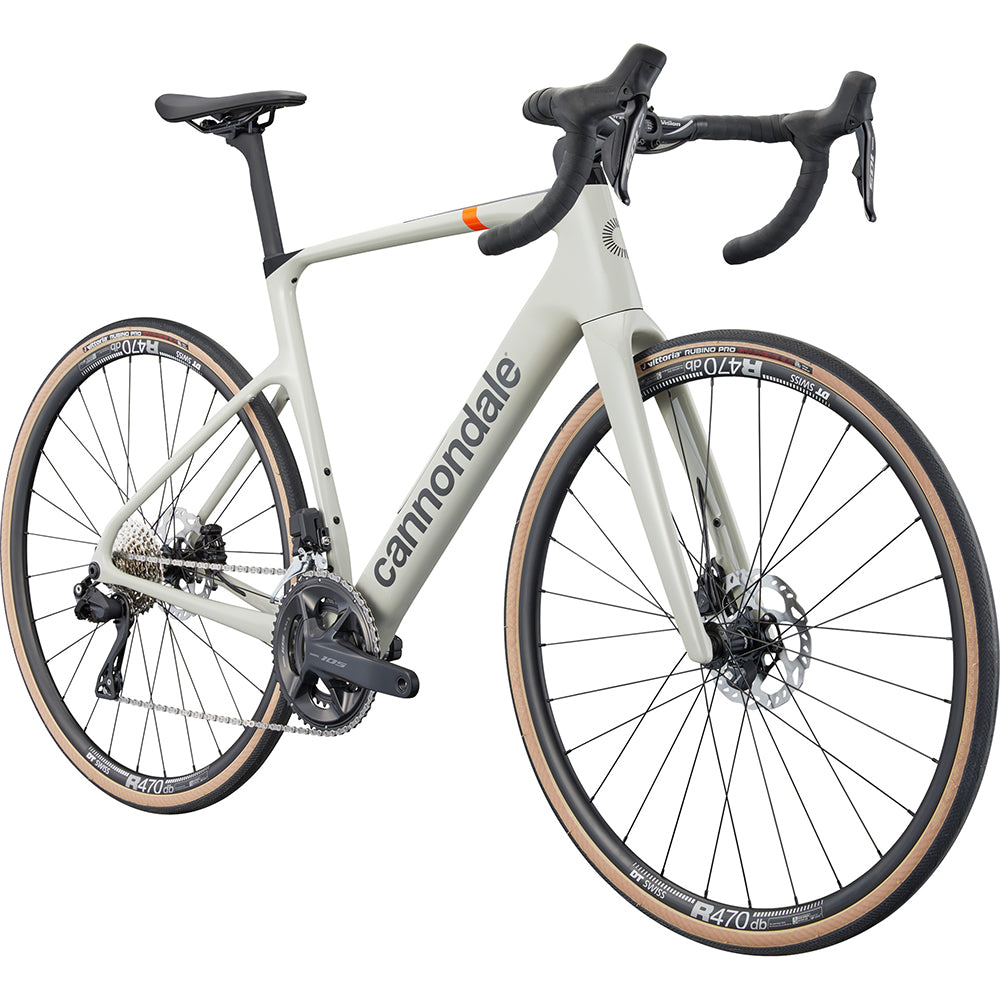

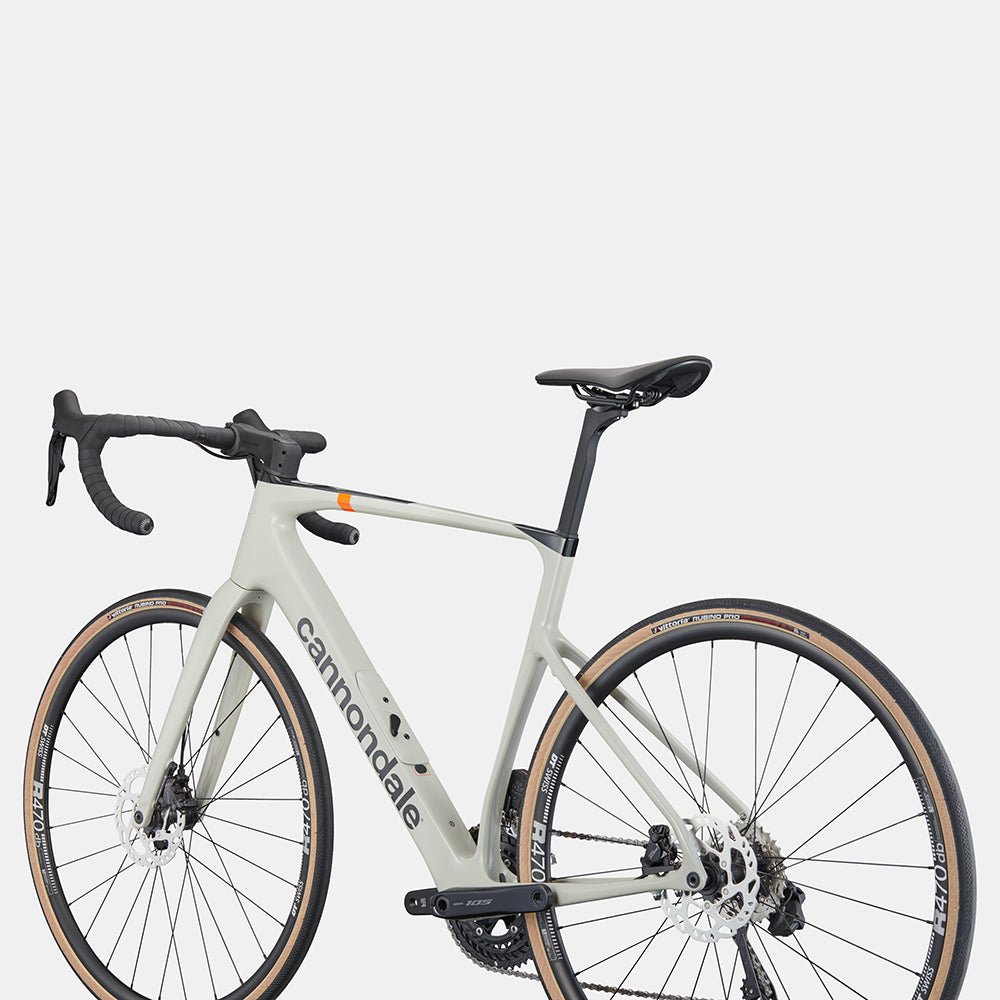

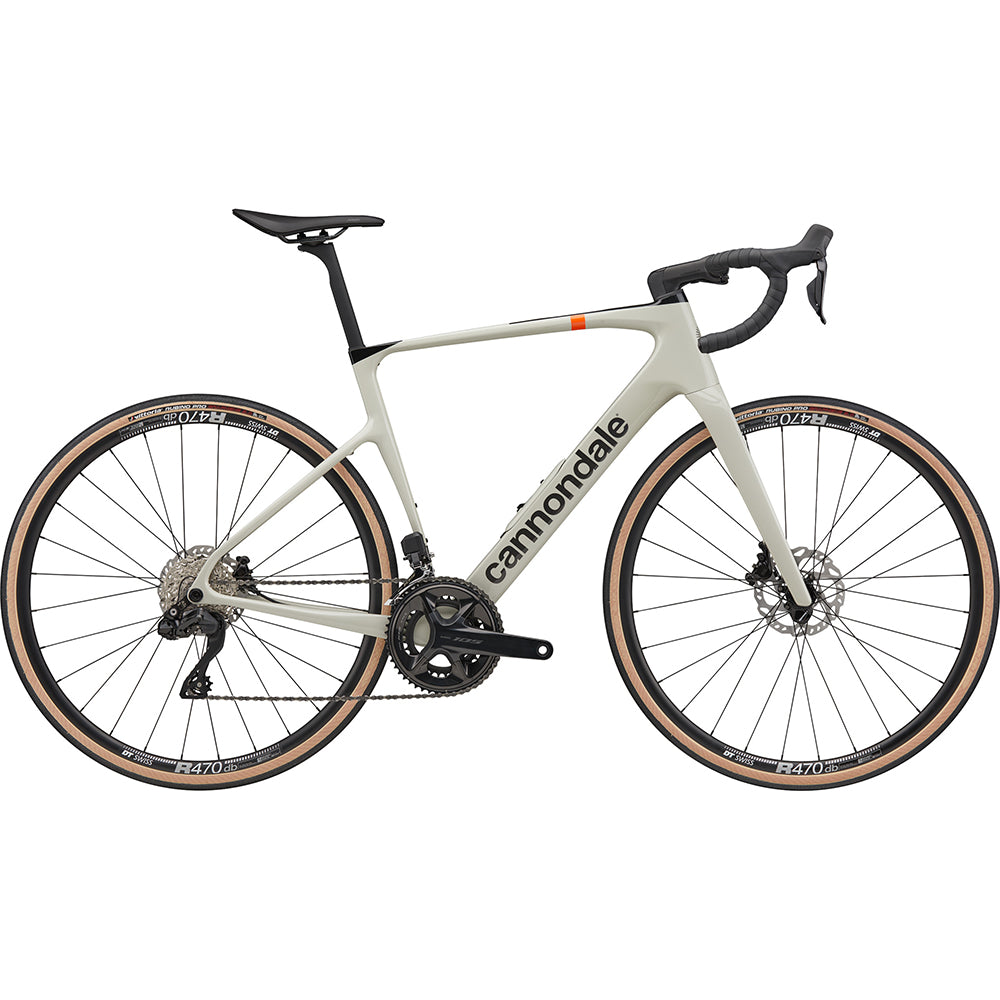

CANNONDALE SYNAPSE CARBON 4
Road Reimagined
Go long, go short, go fast. This is WorldTour performance for real world rides.
Model Description
Wireless brains meet all-road brawn. Synapse Carbon 4 runs Shimano 105 Di2 for a shifting experience that feels straight off the pro tour, minus the bank loan. The frame delivers that signature Synapse ride—quietly fast, endlessly composed—and plays nice with wide tires, fenders, and long days. Call it the sweet spot between Sunday speed and weekday practicality.
Specifications

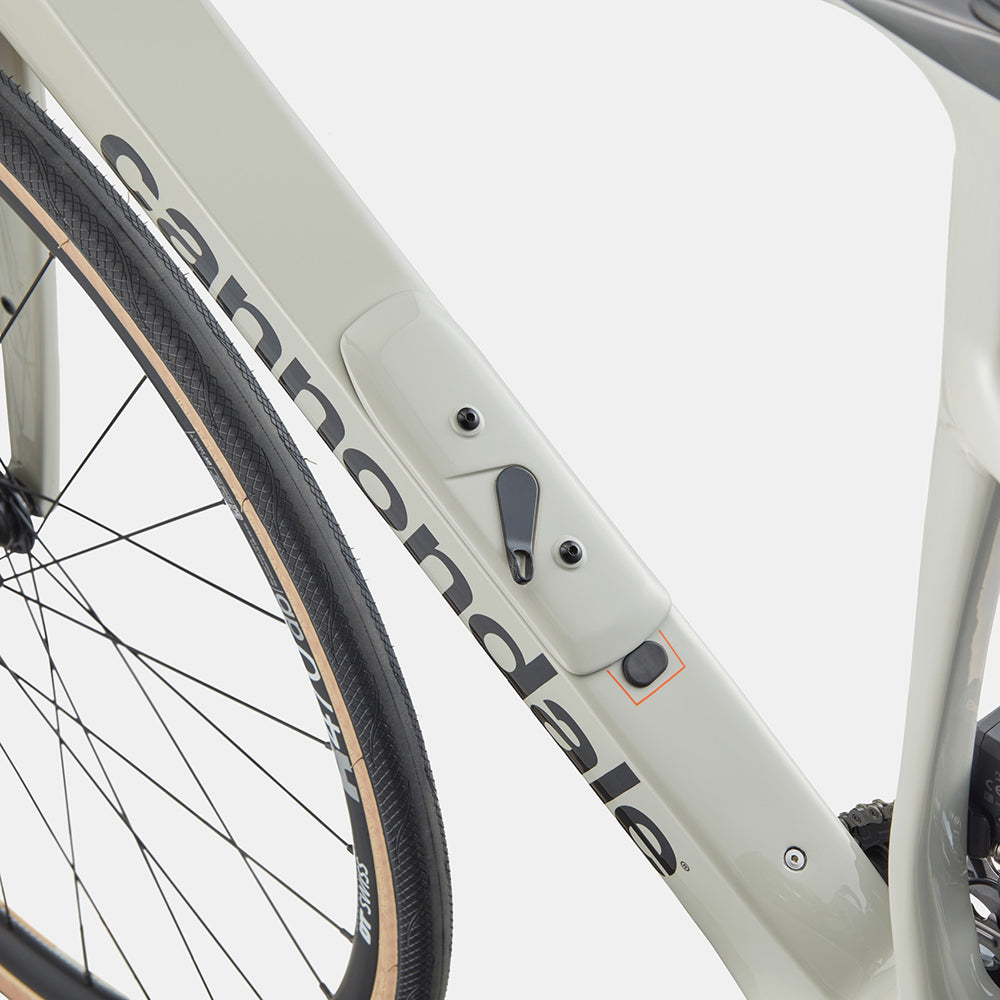

Frame Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
Fork Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Rims DT Swiss R470 DB, 28h
Hubs (F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
Spokes Stainless Steel, 14g
Tires Vittoria Rubino Pro IV, 700x32c

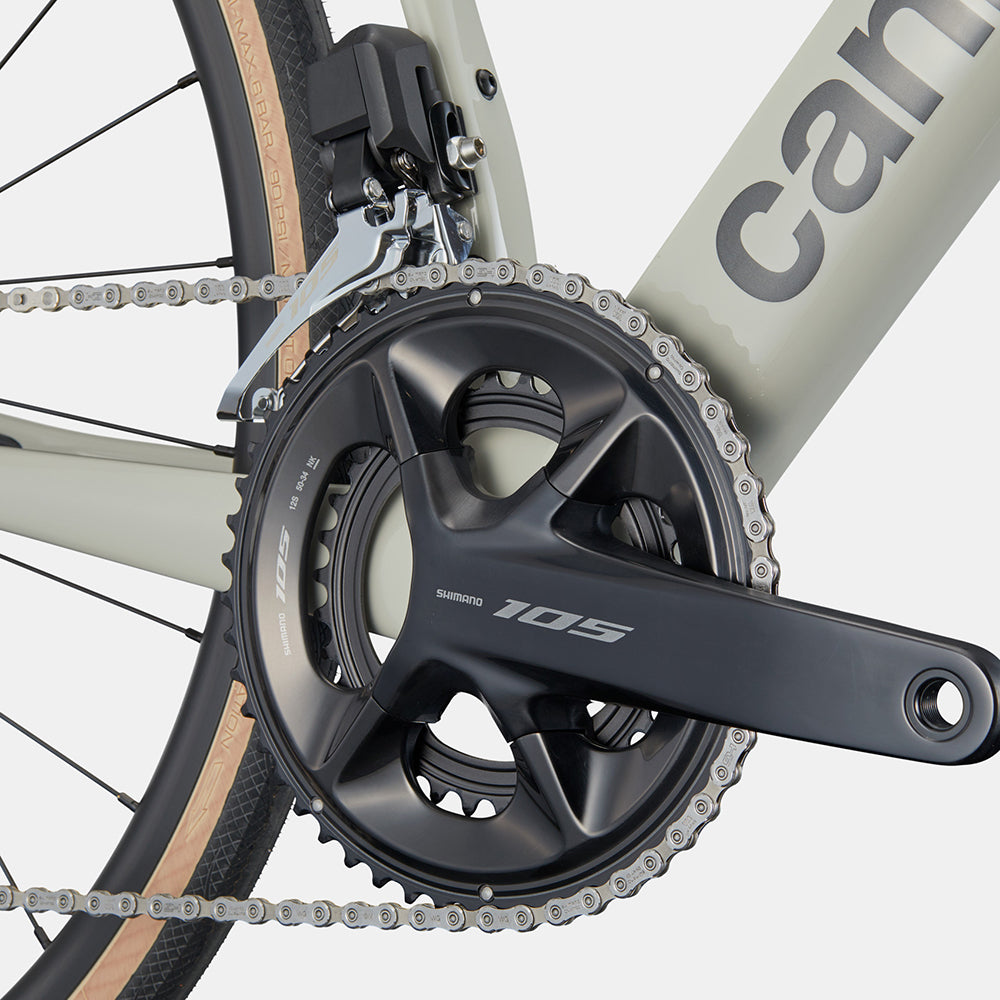

Crank Shimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
Bottom Bracket Shimano BSA 68
Chain Shimano 105 7100, 12-speed
Rear Cogs Shimano 105 7100, 11-34, 12-speed
Front Derailleur Shimano 105 Di2 7150, braze-on

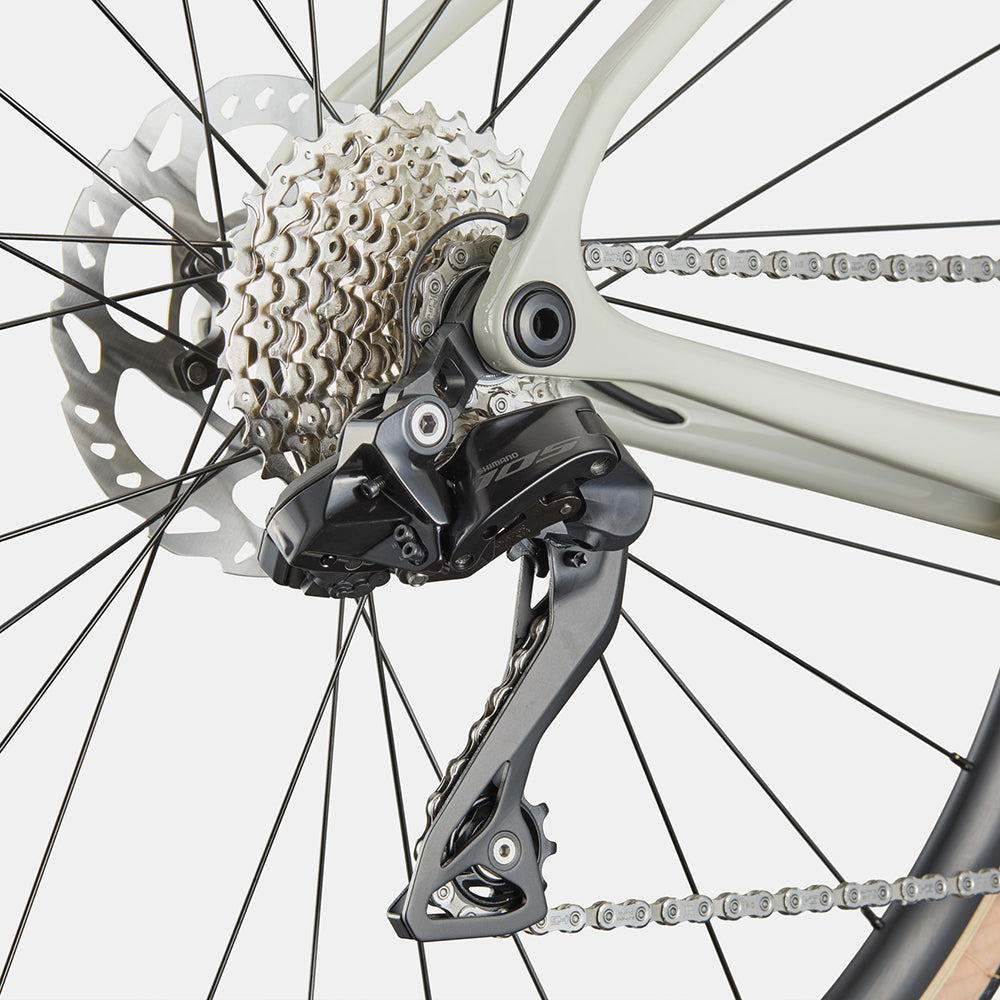

Rear Derailleur Shimano 105 Di2 7150
Shifters Shimano 105 Di2 R7170, wireless, 12-speed

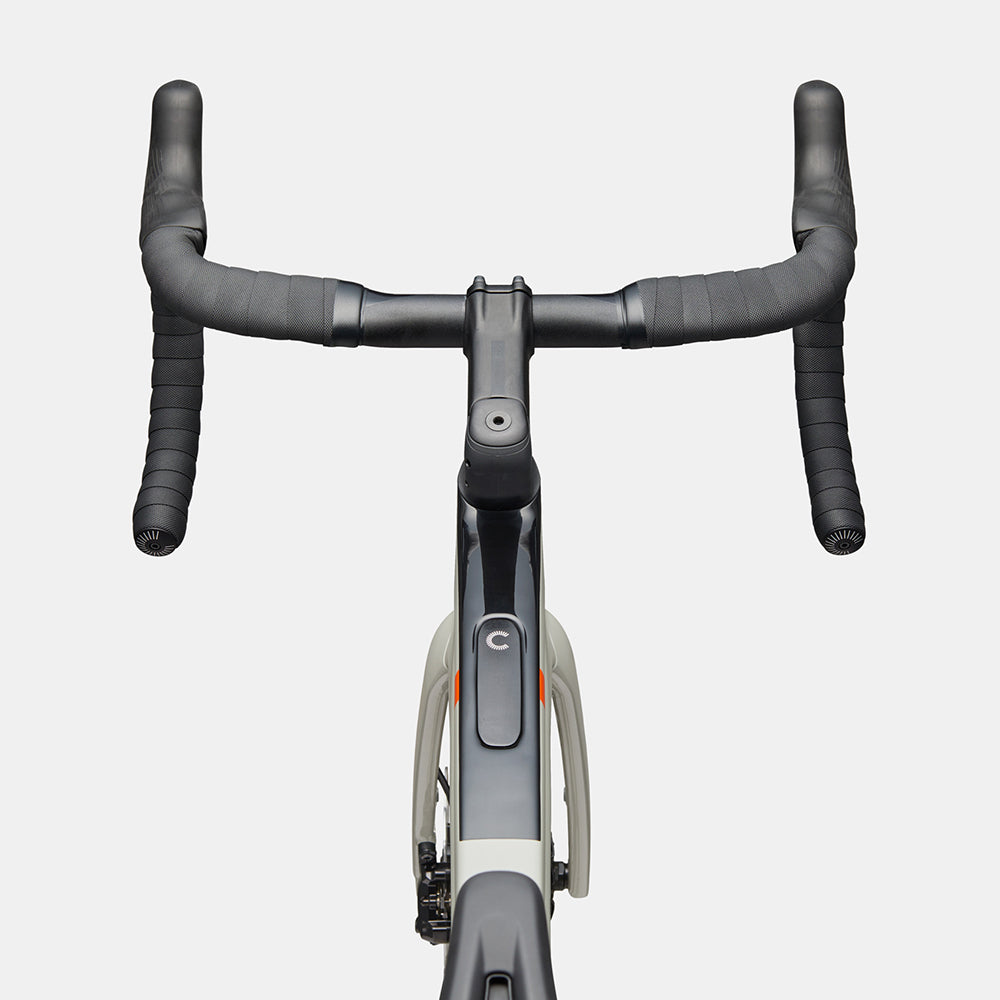

Handlebar Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
Headset Integrated, 1-1/8" - 1-1/2"
Brakes Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
Brake Levers Shimano 105 7170 hydraulic disc
Saddle Fizik Vento Argo X5, 140mm
Seatpost Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
Extras Large StashBag downtube storage bag, Conceal Stem accessory/computer mount (Garmin/Wahoo
